AAS American Access Systems Security Brands Advantage DK ADV1000 Keypad

Price: $407.91 $314.00

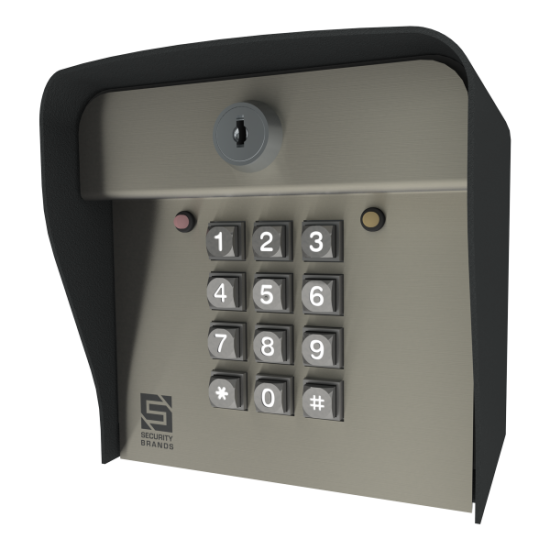

AAS Advantage DK ADV1000 Keypad

The AAS Advantage DK ADV1000 standalone keypad is fully programmable from the beautiful lighted keypad. Features a high-grade stainless steel lockable faceplate and powder-coated steel enclosure that will provide years of trouble-free entry.

The Advantage DK line of keyless entry offers just the right product for many different applications. Each model offers 1,000 fully programmable keypad codes, a programmable latch/hold-open code, sleep code, "3-strikes, you're out" security, two relays, and an external event input. Available with intercom or with a Knox Lock cutout.


Product Info
Features 1000 Code Memory
4 Digit Codes
Controls up to 2 gates/doors
'3 Strikes, You're Out" Security
Personal Master Code
Latch/Hold-Open Code
Sleep Code
Adjustable Relay Output Time
Event Input
Audible-Tone Feedback
Non-Volatile Memory (saved even on power failure)
Lighted Keypad
Lockable Faceplate
2 Year Parts Warranty
Made in USA
Specifications Input Voltage:
12-24 VAC/DC

Current Draw (standby with keypad lit):
40mA @ 12VDC
22mA @ 24VDC

Current Draw (with relay latched)
67mA @ 12VDC
35mA @ 24VDC

Contact Rating = 1A @ 24V / .5A @ 120V
Max Switch Voltage = 150V/220V
Max Carrying Current = 2A @ 150V / 2A @ 220V
Max Switching Power = 28W / 60VA
Adjustable Relay Time = 1-999 Seconds

Operating Temperature:
-15 to 175 Degrees Fahrenheit

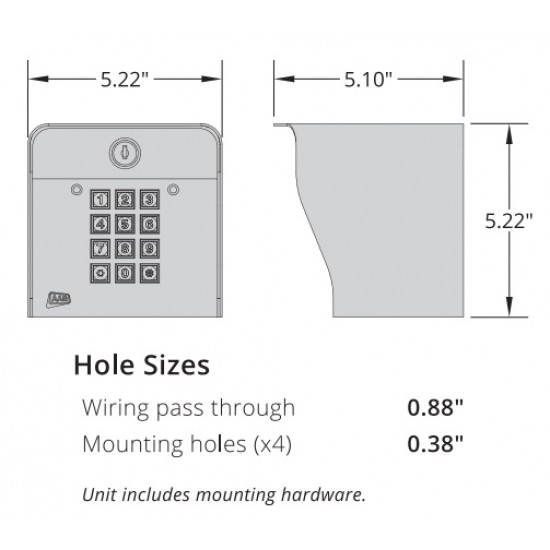

5.22"(H) x 5.22"(W) x 5.10"(D)

Shipping Weight:


AAS ADV-1000 Manual 1.8MB
AAS ADV-1000 Brochure 380.83KB
