HySecurity SLIDEDRIVER 15 is a powerful, rugged, continuous-duty, industrial-grade, hydraulic slide gate operator that exceeds all operator reliability, longevity, maintenance, and security standards.
Cycle up to 1,500 lb gates, any length, at 1 ft/s. Powerful hydraulic motors rotate two compressed polyurethane AdvanceDrive™ wheels, smoothly cycling a rigid drive rail/gate. The robust 12 gauge steel chassis protects all moving parts and controls from vandalism and sabotage. Powder coating over zinc plate provides excellent abrasion and corrosion resistance for an enduring, attractive finish.
Easily configure gate operation to specific site requirements with a unique and unequaled Smart Touch Controller. PC interface provided for easy configuration and quick troubleshooting using Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.). Upload the latest software, troubleshoot the system, and save operator configurations. Programmable dual gate or sequenced gate integration. Three configurable user relays plus optional Hy8Relay™ - an extended relay module providing eight additional programmable relay outputs.
Monitor gate system and accessory status, system operational malfunctions, maintenance alerts, or gate breach alarms. Communicate security or operational events to security command and control or service technician in real time via Ethernet/fiber using optional web-based HyNet™ Gateway. Target specific security and operational alerts to specific recipients. View or download 16,000 plus events (logged in non-volatile memory) from a remote location or on-site for precise and quick system troubleshooting. Operate and configure gates remotely.

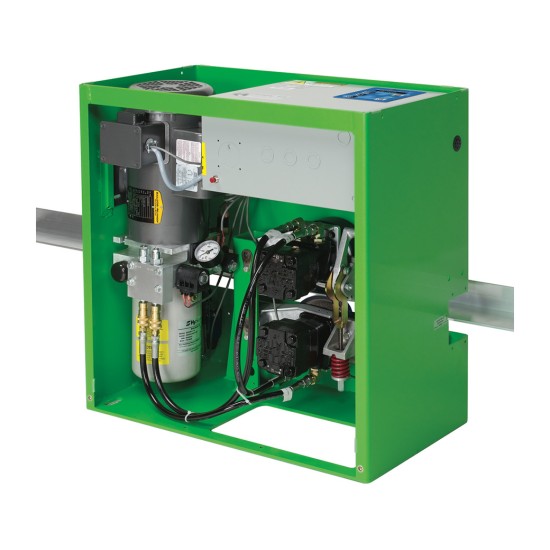

This SlideDriver model locates the motor, hydraulic pump, and electric controls in a remote enclosure to accommodate unique mounting, high security or sites requiring a very quiet operator.
|Features||Ultra-reliable and secure - Used at airports, commercial applications and high end residential sites worldwide Moves gate at 1 ft/s - Cycle up to 1,500 lb gates with no effort! Built to last - The robust 12 gauge, zinc plated, steel chassis protects all moving parts and controls from weather and vandalism Law Enforcement - Industrial grade components ensure extremely low maintenance and exceptionally long life Snowbrush - Use in locations with harsh weather to keep snow and ice buildup at a minimum. Base Extension - Raise SlideDriver 12 inches for additional conduit accessibility and operator flexibility|
|Specifications||Gate Weight Max. Up to 1,500 lb (680 kg) Gate Length Max. Limited only by gate weight! Rate of Travel 1 ft/s (30 cm/s) Duty Cycle Continuous Warranty 5 year|
