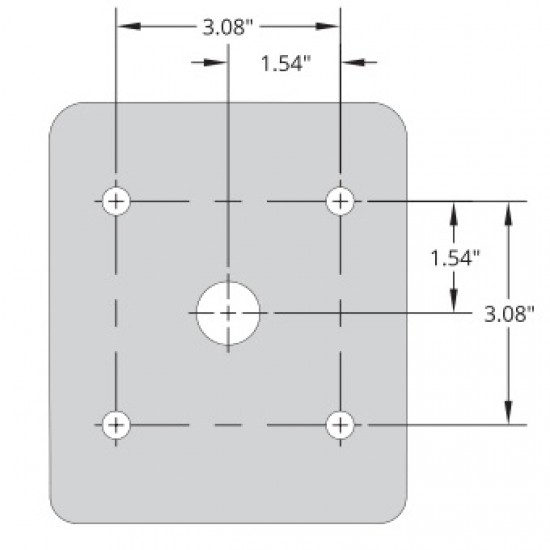

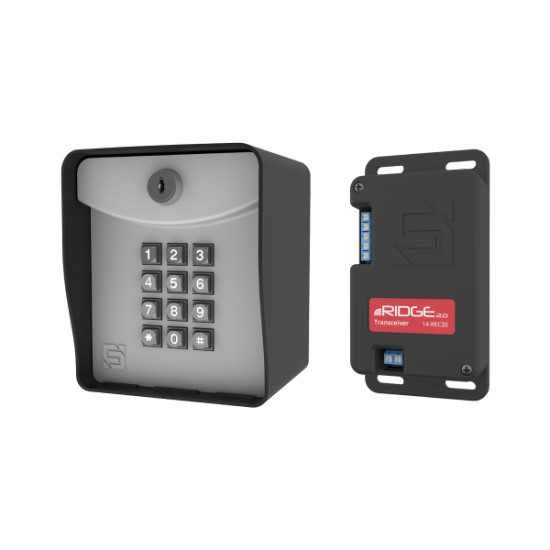

No wires means freedom! Whether you have a residential setup or a light commercial application, the Ridge 2.0 wireless keypad from Summit Access Control can be installed anywhere you need it. It works on any gate operator, but the ultra-low power draw means it plays well with solar systems. Whether it's a simple installation or a multiple-keypad or multiple-gate operator setup, these keypads can handle it. Control 2 gates/doors from 1 keypad, and 1 transceiver can receive commands from up to 20 of the keypads, all with a wireless range of up to 500 feet (maximum, clear line of site). It's a 9VDC, wireless entry keypad and is housed in a durable poly carbonate enclosure with a metal number pad and has a 500 code capacity (four digit codes). The Ridge 2.0 from Summit Access Control is a simple post mount or surface mount installation and the Intelligent Transceiver mounts inside your protective gate operator enclosure.
|Features||500 Code Memory 4 Digit Codes Controls up to 2 gates/doors Connect up to 20 keypads Latch/Hold-Open Code Wireless Range Up To 500 Feet Personal Master Code Limited-use code (1-9 uses) '3 Strikes, You're Out" Security Adjustable Relay Output Time Audible-Tone Feedback Powered by a single 9-volt battery Non-Volatile Memory (saved even on power failure) Polycarbonate Construction Lockable Faceplate 2 Year Parts Warranty Made in USA|

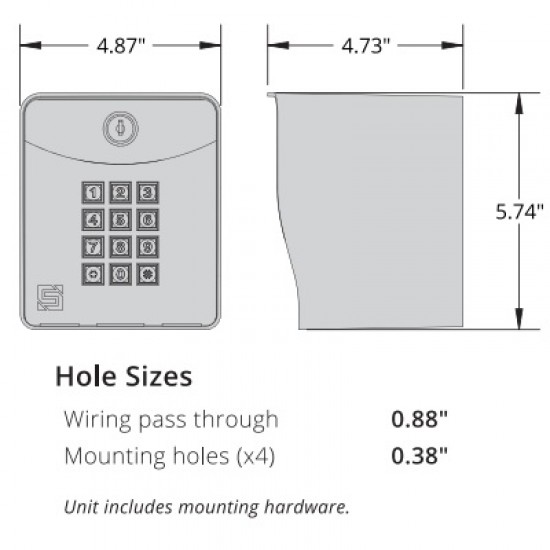

|Specifications||Keypad Input Voltage: 9VDC Transceiver Input Voltage: 12-24VAC/DC Current Draw (standby): 7.9mA @ 12VDC Current Draw (with relay latched) 11.2mA @ 12VDC Relay: Contact Rating = 2A @ 30V / .5A @ 120V Max Carrying Current = 2A / 2A Adjustable Relay Time = 1-999 Seconds Radio Frequency: 433 MHz Operating Temperature: -15 to 175 Degrees Fahrenheit Dimensions: 5.74"(H) x 4.87"(W) x 4.73"(D) Shipping Weight: 4lbs|
