FAAC 422 CBAC Dual Leaf Swing Gate Opener
  • Stock: In Stock
  • Model: 422 CBAC
  • SKU: FAAC422D
$3,099.00
$5,744.00

Available Options

(+$26.00)







The FAAC 422 CBAC Dual Leaf Swing Gate Opener is a compact yet powerful unit designed for residential and small commercial use. Combining the features of large gate openers, this operator employs hydraulics, making it safer by eliminating many pinch points.

Enhanced with a hydraulic bypass valve offers added entrapment protection and a manual release option for power failures. The option for a battery backup unit is also available.

The 422 system provides the flexibility to hydraulically lock the gate in opened and/or closed positions and supports 'gate-safe' or 'gate-secure' configurations. Powered by a versatile FAAC control panel, it offers six operating modes, including garage-door-like operation and a 'hold open' function.

Even with being able to be mounted inside the gate, the 422 system allows the gate to open both inside and outside. Enjoy the aesthetic adaptability of all FAAC operators, which can be finished to blend seamlessly with your gate.

Product Info

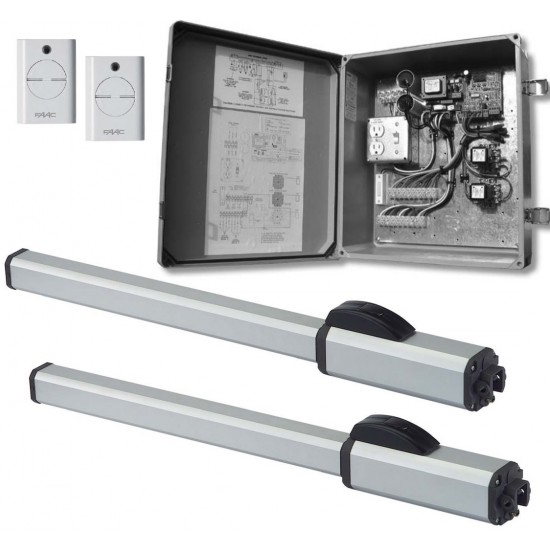

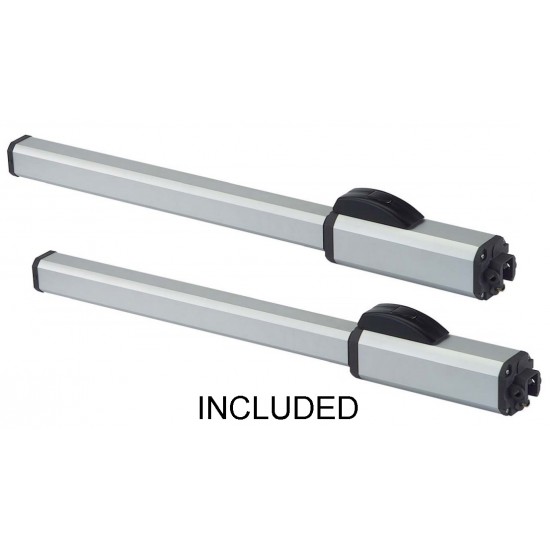

Kit Includes FAAC 422 CBAC Dual Gate Opener Kit Includes: 1qty Prewired Fiberglass Enclosure 1qty 455D Control Board 2qty 422 CBAC Operators 1qty Radio Receiver 2qty Remote Controls 1qty Pair of Safety Beams Installation Support Lifetime Technical Support
Features Features FAAC Model 422 features include: Designed for demanding single family residential use Can move a 900 pound gate leaf 90 degrees in 12 seconds Hydraulic locking in the opened and/or closed positions A convenient manual release is standard A battery back-up unit is available A high-speed version of the 422 is available for pedestrian gates FAAC Model 422 Kit includes: One or two hydraulic gate operators with mounting hardware One 455 D control panel One 14 x 16 in. weather resistant UL Listed fiberglass enclosure One photobeam set for opening and closing reversing devices One or two manual release keys One plug-in radio receiver Two radio transmitters 115 VAC receptacle for accessories (5 amp max.) ON/OFF switch controlling power to control panel, accessories and plug outlet Large pre-wired terminals for easy wiring to control panel Test button
Specifications Quick Specs Max Leaf Length 10 ft Max Leaf Weight 900 lbs Cycles per Hour 30 Maximum Gate Swing 90 Degrees Opening Time 12 seconds
