Linear AE-2000 Telephone Entry

  • Brand: Linear
  • Product Code: AE-2000
  • Availability: Out Of Stock

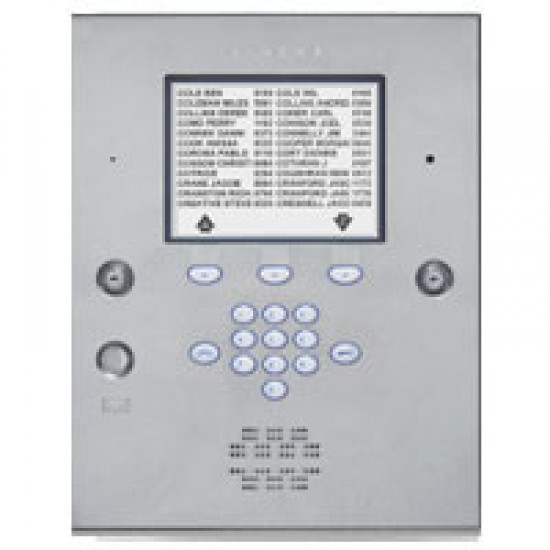

Linear AE-2000 Telephone Entry

Linear Model AE-2000 Commercial Telephone Entry System with Access Control is designed for use as a primary access control device for gated communities, parking garages, office buildings, apartments, dormitories, hotels/motels, commercial buildings and recreational facilities.

Housed in a locked, rugged stainless steel faced enclosure, the AE-2000 features a lighted keypad with bright, easy-to-read graphics, a large backlit display with programmable welcome message, a built-in microphone, speaker, and provision for an optional color CCTV camera. The cabinet is monitored with a magnetic tamper switch.

The four relay output channels can be programmed to control electric door strikes, magnetic locks, door & gate operators, or barrier gates.

The system utilizes hands-free, full duplex telephone communications between visitors and residents for granting access. Complete access control event logging, access time restriction, access location restriction, and administration functions are also available to manage the installation.


Product Info
Features Features
Full control of 4 doors; each supporting request to exit and door status monitoring
Housed in a locked, rugged stainless steel face enclosure
Articulated, double-locking, stainless steel front panel
Temperature compensated, back-lit VGA resolution LCD display
Back-lit keys
Built-in microphone and speaker
Built-in RF receiver
Many installation choices: surface, recessed, gooseneck
Programmable directory code length and talk time; extended talk time allowed per cardholder
10,000 cardholders
10,000 directory codes - each capable of dialing up to 12 digits
46,500 block enrolled cards; 20,000 individual cards
46,500 block enrolled transmitters; 20,000 individual transmitters
20,000 entry codes.20,000 event transaction log
Direct input for 2 card readers; add AM-CRI's for more
Local or remote programming using a PC and AccessBase2000 at 33.6 Kbps 32 security levels, 32 time zones, 32 door schedules, and 24 holiday schedules
Relay auto lock/unlock schedules
Automatic door relock when door sense input is used
Extensive ESD and lightning protection of all inputs and outputs
Cabinet tamper switch included; tamper events are tracked in the event log
All data memory is non-volatile FLASH with data retention in excess of 10 years
OPTIONAL EQUIPMENT: TR-1000 (ACP00909): trim ring for flush/recess mounting, CCM-1 (ACP00904): color camera receives power from control board, CPDM-1 (AAE00436): digital modulator combines video output of camera with CATV source to allow tenants to view on their TVs who is at the AE-1000.


Linear AE-2000 Brochure 304.31KB
Linear AE-2000 Manual 1.63MB
