OSCO HSLG Commercial Slide Gate Operator

  • Brand: OSCO
  • Product Code: OSHSLG-2
  • Availability: In Stock

Price: $3,268.00 $1,997.00

Available Options

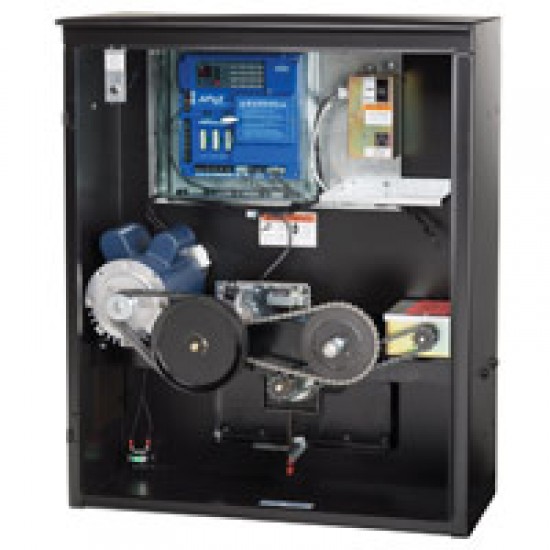

OSCO HSLG Commercial Slide Gate Operator

The OSCO HSLG heavy duty slide gate operator is available in 1/2, 3/4, and 1 horsepower. As well as in various supply voltages and phases and can open at 10" per second gate speed.


Product Info
Features Integral APeX Controller
Double V-belt to chain reduction
#40 roller chain
1/2, 3/4, or 1 HP motor
All voltages, single or three-phase
Emergency manual disconnect handle
Powder coat finish
Post mount standard; pad mount optional
HSLG Electrical
Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
Continuous-tone entrapment alarm with reset button
Integrated warning beeper during gate movement
15 diagnostic LEDs on board for ease of setup and troubleshooting
Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
On-board APeX Controller three-button control station
AC and DC power available for access control accessories
All accessory connections 24 VDC
Solenoid disc brake
Duplex receptacle on 115 VAC units
Built-in master/slave capability using 3-wire shielded cable
HSLG Mechanical
Heavy-duty steel chassis
Adjustable torque limiter
#40 roller chain and sprockets
Efficient double V-belt drive
Specifications Quick Specs

1/2 HP
Max Gate Length (ft) 35
Max Gate Weight (lbs) 1000
Inches Per Second 10
Quick Specs

3/4 HP
Max Gate Length (ft) 45
Max Gate Weight (lbs) 1200
Inches Per Second 10
Quick Specs

1 HP
Max Gate Length (ft) 55
Max Gate Weight (lbs) 1700
Inches Per Second 10


OSCO HSLG Brochure 123.84KB
