OSCO OSSWR-211 115 Volt Operator


  • Brand: OSCO
  • Product Code: OSSWR-211
  • Availability: In Stock

Price: $1,655.00 $995.00

Description

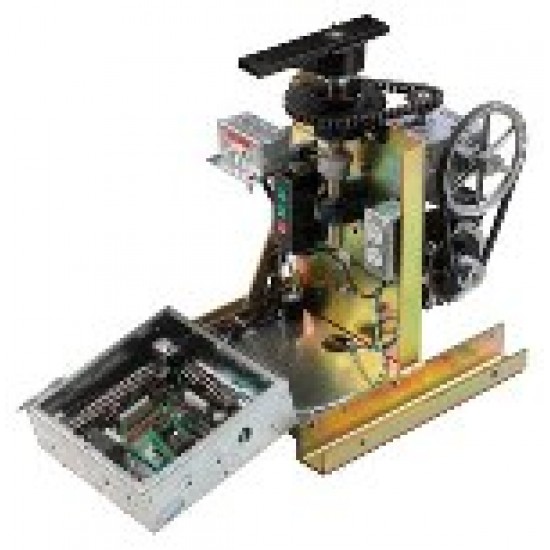

OSCO OSSWR-211 115 Volt Operator

The OSCO SWR Residential 1/2 HP Swing Gate Operator is built for gates up to 17 ft. and 500 lbs. The Gate operator opens in 11-14 seconds in continuous cycles.

Specification

Features
Features All SW Series operators utilize a common UL325/UL991 compliant 24VDC control board
Fully featured board for complete access control, security and entrapment protection
Polyethylene Cover
Heavy Duty Components
The sleek and sturdy lockable cover is available in black, tan or granite with a lockable steel access door
Gear reducer and pillow block bearing provides smooth, reliable and quiet power transmission
High starting torque
Heavy duty PSC motors
Standard Convenience Features
Exterior reset button
Power on/off button
Accessory power outlet on 115V operators
3-button station
Master/slave compatible - LH/RH selectable
Easily accessible control box and limit switches
Quick disconnect crank assembly
Electrical/power disconnect
Accepts all accessories
Footprint 18.31” x 22.64”
Inherent entrapment sensing system featuring dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
Continuous tone entrapment alarm with reset button
Integrated warning beeper during gate movement
15 diagnostic LEDs on board for ease of setup and troubleshooting
Selectable pre-start alarm with provision for ADA compliant visual prestart and run alarm
AC and DC power available for access control accessories
Integrated maximum run and auto close timer (0-124 sec)
Built-in master/slave capability using 3-wire shielded cable
Specifications
Specifications 1/2 HP
Max Gate Length: 17ft
Max Gate Weight: 500lbs
seconds to open: 14

Downloads

OSCO SWR Brochure 146.66KB
OSCO SWR Manual 16.22MB
