OSCO SLD Slide Gate Operator


  • Brand: OSCO
  • Product Code: OSSLD-211
  • Availability: In Stock

Price: $2,425.00 $1,595.00

Description

OSCO SLD Slide Gate Operator

Linear OSCO SLD Slide Gate Opener

Linear Osco SLD slide gate is a residential/commercial duty slide gate operator with DC battery backup, available in 1/2 horsepower, 115V supply voltage, 12" per second gate speed. The SLD is Solar power capable with 24 volt solar panels.

The OSCO SLD has four programmable options for gate operation in case of an AC power failure:

With Fail Safe selected, if AC power fails the gate will cycle open and remain open until AC power is restored or the battery backup gets charged by solar panels. Then, the SLD will resume normal operation and auto-close if programmed to do so.

With Fail Secure selected, if AC power fails and the backup battery voltage becomes low, the slide gate will close and remain closed until AC power is restored or the battery gets charged by solar panels. Then, the SLD will resume normal operation.

With Open Immediate selected, if AC power fails the operator will cycle open immediately and remain open until AC power is restored. Then, the SLD will resume normal operation and auto-close if programmed to do so.

With Close Immediate selected, if AC power fails the operator will cycle closed immediately and remain closed until AC power is restored. Then, the SLD will resume normal operation.



    Model

    HP

    Voltage
    (Single Phase)

    Maximum
    Gate Length

    Maximum
    Gate Weight

    Gate Speed

    Maximum Cycles

    SLC

    SLC-2

    1/2

    115 or 230V

    37 ft

    1000 lbs

    11"/sec

    Continuous

    SLC-1

    1

    45 ft

    2000 lbs

    SLD

    SLD-211

    1/2

    24 VDC
    Solar Optional

    25 ft

    700 lbs

    8"/sec

    30/hour

    SLR

    SLR-211

    1/2

    115 V

    25 ft

    500 lbs

    11"/sec

    150/day

    SLR-221

    1/2

    230 V

Specification

Features

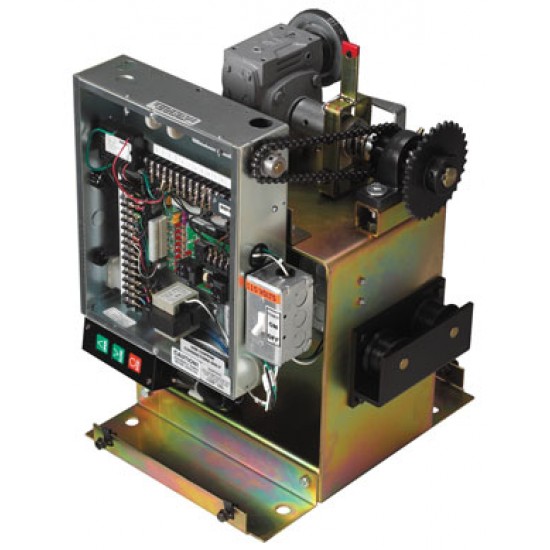

Features APeX Controller
Full transformer run DC powered operator with built-in battery backup
Dual batteries charged by 115 VAC or optional solar panels
Built-in MegaCode receiver

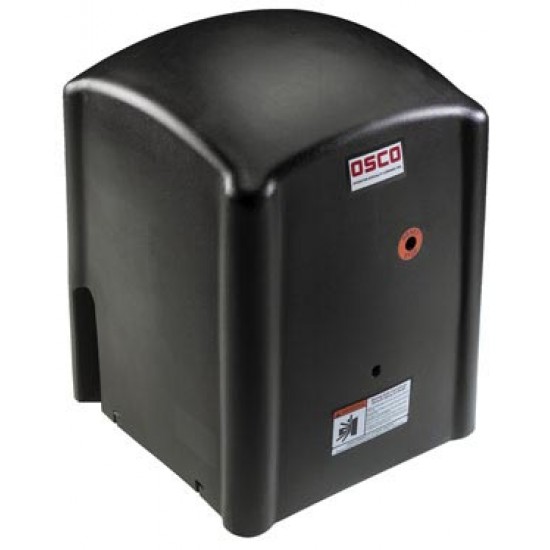

Black polyethylene cover
Full-time 1/2 HP DC motor
Selectable fail-safe or fail-secure modes of operation
Solar power capable
Gear reducer, size 60, 20:1
Soft start/stop
Easy-to-operate emergency manual disconnect handle
Exterior reset button
ETL Listed for UL 325 (Class I-IV) for U.S. and Canada
Specifications
Specifications 1/2 HP
Max Gate Length (ft) 25
Max Gate Weight (lbs) 700
Inches Per Second 8
