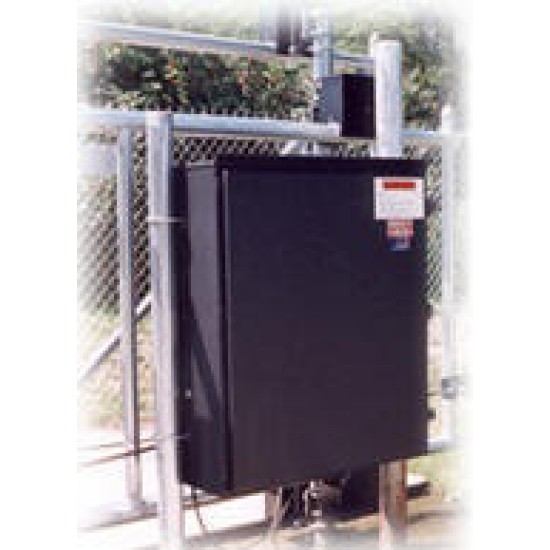

OSCO VS-GSLG Commercial Slide Gate Operator

  • Brand: OSCO
  • Product Code: OSVSGSLG-2
  • Availability: In Stock

Price: $6,423.00 $4,249.00

Available Options


OSCO VS-GSLG Commercial Slide Gate Operator

Linear OSCO VS-GSLG is a Commercial Slide Gate Operator. This gate operator is a Variable Speed operator. The OSCO VS-GSLG variable speed operator starts and stops at a slower speed, which is less stressful on the operator and gate and saves wear and tear on the components. This operation may add a few seconds to the opening speed but is well worth the extra time in avoiding the sudden jerking of the operator at the start and slamming of the gate at the stop. Linear OSCO is one of the nation's foremost manufacturers of commercial and residential gate and door operating systems, Linear OSCO provides quality automatic openers for the fencing, parking, ornamental iron and garage door industries.


Product Info
Features Post mounting standard (pad mounting option available)
Adjustable rotary limit switches
Manual disconnect
Adjustable torque limiter
Heavy duty pillow block bearings
Heavy-duty wormgear reducer
N0. 50 chain
Shipping weight 350 - 375lbs.
C-face magnetic brake

VS-GSLG Electrical:

Variable speed motor
Available in standard voltages
24-volt control circuit
Contactor-type magnetic reversing starter
Electrical power disconnect
Three-button control OPEN-CLOSE-STOP
Clutch timer protection
Fully-adapted circuits; use any accessories
Easily RH/LH convertible
Delay on reversal
Warning beeper
Low voltage surge suppressor included
Specifications Quick Specs

1/2 HP
Max Gate Length (ft) 45
Max Gate Weight (lbs) 1100
Inches Per Second 24
Quick Specs

1 HP
Max Gate Length (ft) 78
Max Gate Weight (lbs) 2500
Inches Per Second 24
Quick Specs

2 HP
Max Gate Length (ft) 100
Max Gate Weight (lbs) 4000
Inches Per Second 24


OSCO VS-GSLG Brochure 127.46KB
OSCO VS-GSLG Manual 1.55MB
