OSCO VS-GSWG

OSCO VS-GSWG
Downloads
OSCO VS-GSWG Brochure
OSCO VS-GSWG Manual
OSCO VS-GSWG
  • Stock: In Stock
  • Model: OSVSGSWG-2
  • SKU: OSVSGSWG-2
Price Too Low to Publish

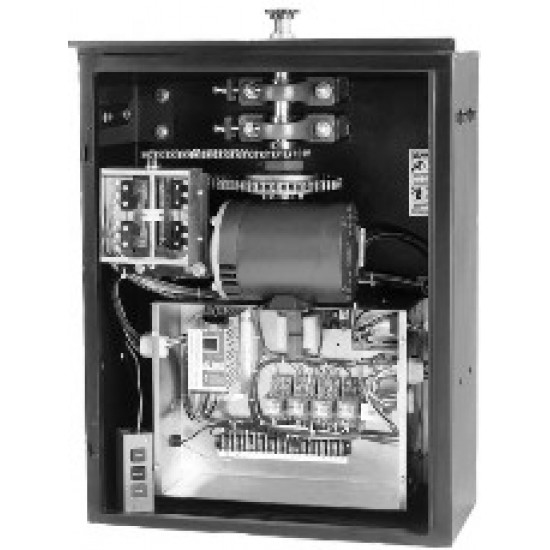

The Linear OSCO VS-GSWG is a heavy-duty variable speed swing gate operator designed for smooth, secure and reliable operation of large, heavy swing gates. The positive locking linear drive arm design provides enhanced security, plus increased ability to withstand high wind loads - especially important for large, heavy gates. The VS-GSWG is available in 1/2, 1 or 2 HP, 115V-460V single- or three-phase power, 18-22 second gate opening speed.

Product Info
FeaturesCabinet:Weather-resistant galvannealed steel cabinet with powder coat finish Lockable, gasketed, hinged and removable front cover for easy access Mechanical:Heavy-duty 60:1 right-angle C-face gear reducer Adjustable torque limiter Linear drive arm Heavy-duty pillow-block bearings Mounting:3 - 3 1/2" OD post mounting Optional pad mounting pedestal available Anti-Entrapment/Detection Devices:Operator is pre-wired to accept contact and non-contact detection devices such as contact edges and/or photo electric eyes Manual Release:Manual release is located inside the operator enclosure Electrical:Variable speed - soft start/soft stop programmable through an inverter motor control (voltage & phase of input power supply required at time of order) Available from 1/2 to 2 HP industrial continuous-duty, three-phase, 56-frame motor Available in all standard voltages and phases Run timer for clutch and motor protection Delay on reverse Master/Slave capability built in Easily convertible right hand/left hand Solid state control circuit Double C-face brake Power on/off switch Duplex receptacle on 115 VAC units Three-button control station included Accessory connections are 24-volt AC or DC Easily adjustable rotary limit switches Full system capable for access controls and reversing devices Warning Signals:Warning beeper to sound when gate is moving Description: The Linear/OSCO Model VS-GSWG is a heavy-duty variable speed swing gate operator designed for smooth, secure and reliable operation of large, heavy swing gates. The positive locking linear drive arm design provides enhanced security, plus increased ability to withstand high wind loads - especially important for large, heavy gates. The VS-GSWG features the same proven and reliable UL325/UL991 compliant solid state control circuitry as the rest of the Linear/OSCO family of gate operators and is available in 1/2, 1 or 2 HP, 115V-460V single- or three-phase power. The VS-GSWG utilizes an inherent current sensing system for entrapment protection and is listed for use in UL class I-IV applications.
SpecificationsQuick Specs1/2 HP Max Gate Length (ft) 20 Max Gate Weight (lbs) 600 Inches Per Second 221 HP Max Gate Length (ft) 32 Max Gate Weight (lbs) 1000 Inches Per Second 222 HP Max Gate Length (ft) 36 Max Gate Weight (lbs) 1000 Inches Per Second 22
