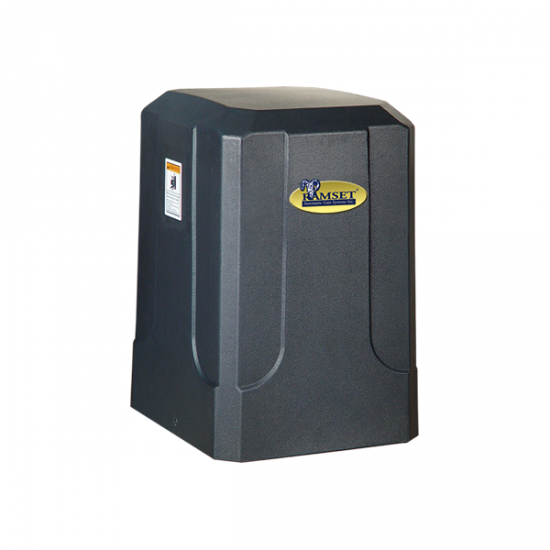

Ramset RAM 100 Slide Gate Operator 1/2HP

  • Brand: RamSet
  • Product Code: Ram 100
  • Availability: In Stock

Price: $1,625.00 $959.00


Ramset RAM 100 Slide Gate Operator 1/2HP

This affordable gate opener features a low maintenance, direct drive 1/2 horsepower motor.  Simple to install and use, the RAM 100 comes equipped with the foot pedestal release safety system, allowing easy manual opening and closing of the gate during power outages and emergencies. The Ram 100 also features our whisper quiet motor operation

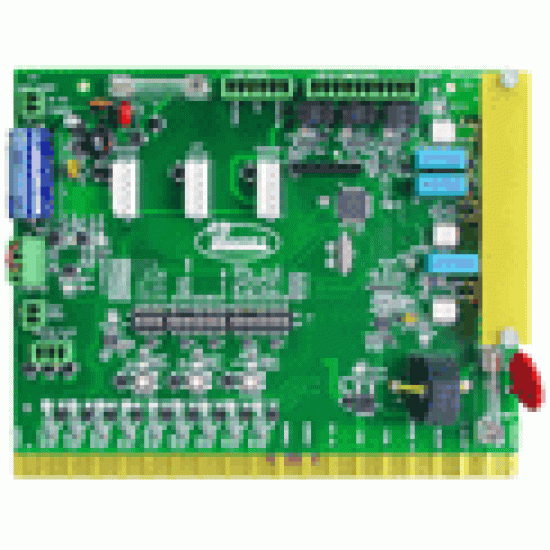

Features Control Board:
easy to configure solid state board with features such as LED readouts to indicate status of operator at all times

Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening or closing; reverses for 1 second and stops

Audio Alarm:
audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to reset alarm included

Automatic Timer:
can be set from 0 to 60 seconds

Maximum Running Timer:
motor shuts off after 60 seconds

included five wire connection to synchronize movement between two gates

Electronic Inputs:
for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry system, three button station, photo cell, safety edge and magnetic lock

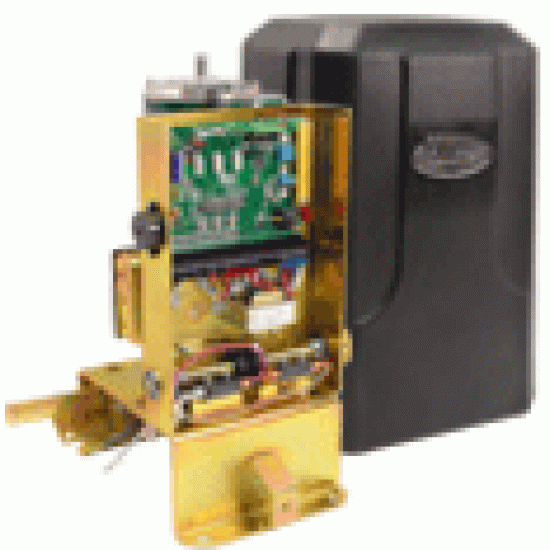

Mechanical Features

instant reversing 1/2 HP, 120 VAC, 4.5 amp, 1625 rpm with high speed ball bearings

Maximum Gate Size & Weight:
20' @ 600 lbs.

Continuous Duty

Gate Traveling Speed:
approximately 12" per second

3/16" hot rolled metal, sanded and zinc/gold plated to inhibit corrosion

Gate Stops:
with electrical limit switches and rotary limit nuts

Speed Reducer:
high quality worm gear reducer continuously lubricated in an oil bath

black heavy-duty fiberglass with high gloss finish

Emergency Release:
exclusive and unique foot pedal to release and disengage gate from motor

Shipping Weight:
95 lbs.

Warranty: 10-Years limited warranty


Ramset 100 / 1000/ 5500 CutSheet 950.14KB
