FAAC 760 CBAC dual leaf operator


  • Brand: FAAC
  • Product Code: 760 CBAC Dual
  • Availability: In Stock


Description

FAAC 760 CBAC dual leaf operator

The manufacturer has discontinued this item; the replacement item is their new FAAC S800H

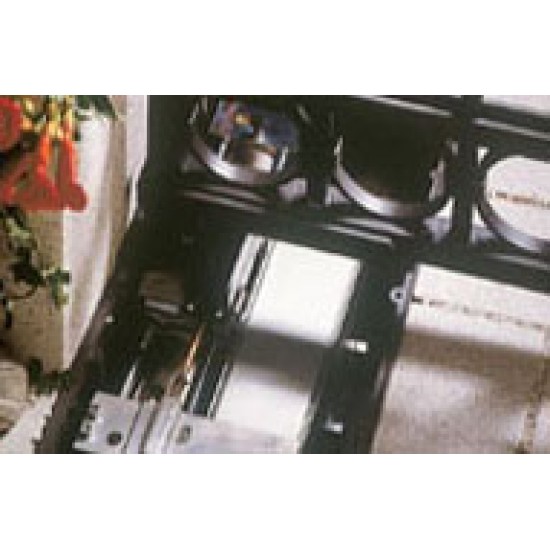

The FAAC Model 760 hydraulic in-ground swing gate operator is designed specifically for underground installation in residential applications. Because of It’s power and invisibility, the 760 is ideal for large, ornamental gates.

Hydraulic swing gate openers are inherently safer than other types of operators because they have fewer “pinch points.” In addition, the FAAC 760 underground operator is equipped with a hydraulic bypass valve for extra entrapment protection and a manual release that allows you to operate your gate if there is a power failure.
A battery back-up unit is also available.

The 760 hydraulic system can hydraulically lock your gate in the opened and/or closed positions. Your gate system can also be set up to provide special options including “gate-safe” or “gate-secure”

configurations:
• Gate-safe: during power outages, a magnetic lock releases a closed gate to permit emergency access.
• Gate-secure: during power outages, an electric lock keeps a closed gate locked.


The 760 underground swing gate operator allows your gate to open to the inside or to the outside. The versatile FAAC control panel allows for six operating modes including garage-door-like operation and a new HOLD OPEN function.

The FAAC Gate Operator Model 760 swing gate opener includes the special feature of having both the power and pump units located underground. This integrated system results in simplified installation and maintenance, plus allows you to operate the manual release from inside or outside the gate. The 760 also comes with a “soft stop” feature which slows down the gate leaf at the end of travel.

Specification

Features
Features Features
Power and invisibility make the 760 ideal for large, ornate gates

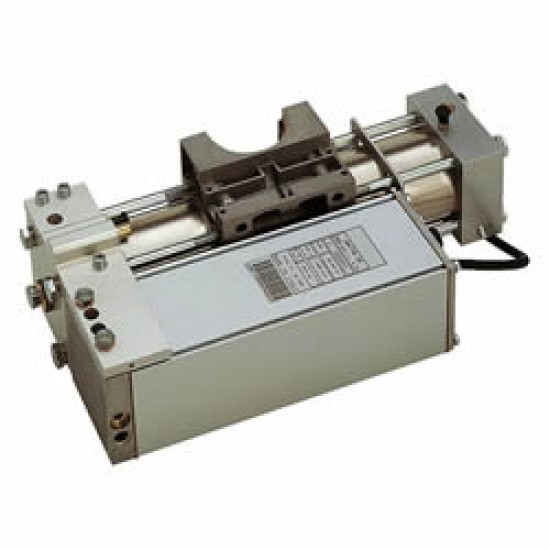

Both the pump and drive units are located below ground
Equipped with a hydraulic bypass for extra anti-entrapment protection
Versatile FAAC control panel offers six operating modes, including garage-door-like operation and a HOLD OPEN function
Hydraulic locking in the opened and/or closed positions
Convenient manual release is standard
Model 760 Kit Includes:
One or two drive-pump units
One or two load bearing boxes
One or two keyed manual releases (CBAC versions only)
One 455 D control panel
One 14 x 16 in. weather resistant UL Listed fiberglass enclosure
One photobeam set for opening and closing reversing devices
One or two manual release keys
One plug-in radio receiver
Two radio transmitters
115 VAC receptacle for accessories (5 amp max.)
ON/OFF switch controlling power to control panel, accessories and plug outlet
Large pre-wired terminals for easy wiring to control panel
Test button
Two or four warning signs
Specifications
Specifications Quick Specs
Max Leaf Length 13 ft
Max Leaf Weight 1760 lbs
Speed to 90 ° (secs) 12

Downloads

FAAC 760 Brochure 2.14MB
FAAC 760 Gate Safety Manual 1.85MB
FAAC 760 Manual 937.23KB
