FAAC 390 Dual Swing Gate Opener


  • Brand: FAAC
  • Product Code: 390
  • Availability: In Stock

Price: $2,066.00 $1,845.00

Description

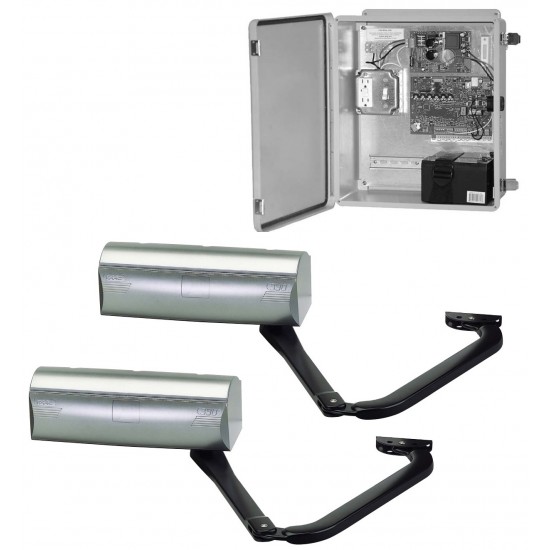

FAAC 390 Dual Swing Gate Opener

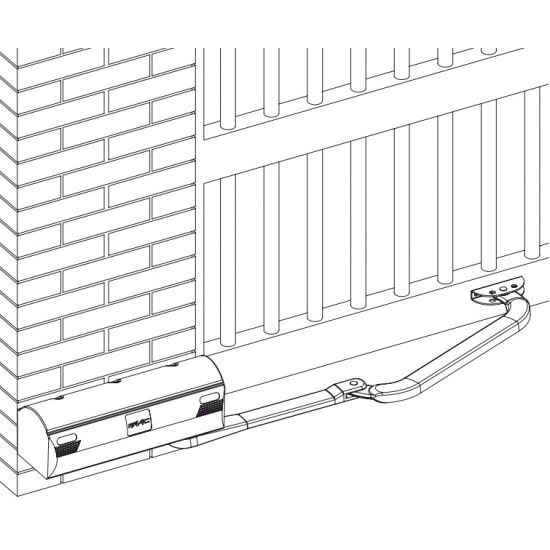

The FAAC Model 390 was designed primarily to accommodate large pillar/column installations. This unit provides a sleek solution to avoid using a bulky ground unit, and it reaches around the column to move the gate, which allows you to avoid the need to cut/notch out the rock or brick to accommodate a traditional residential linear actuator. This electromechanical swing gate openers is designed for light duty, single family residential property, and is perfect for the single swing or double swing column mount gates, wall mount gates or carriage doors.


Key Features

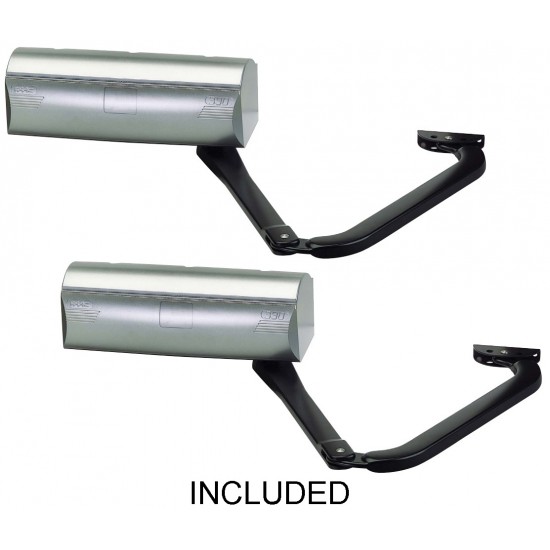

  • The system has non reversing motors that hold the gate in the open and closed positions

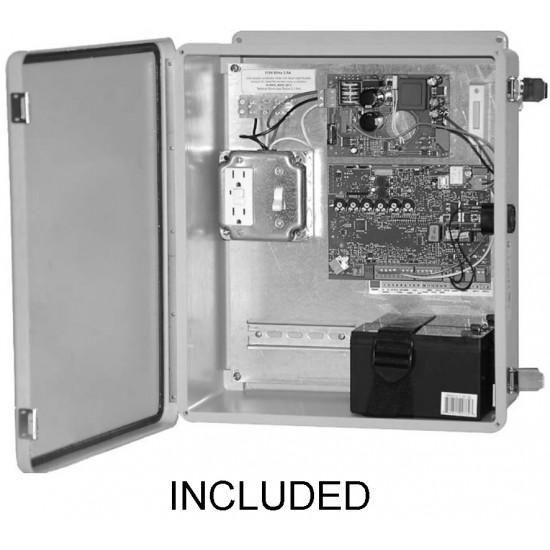

  • Electronic control unit with anti-crushing device and virtual encoder with reverse function upon detection of obstacle
  • Emergency battery to ensure operation in case of power failure
  • IMPORTANT to ensure correct operation, make sure that the distance between the gate hinge and the gate pier edge is maximum 11.8 inches (300mm)

Product details

The Electro-mechanical operator is simple to install, requiring no welding.

Specification

Features
Features Features
Two year limited warranty
New and improved EO24U Control Board
Increased gate length & weight capacity
Built-in Battery Backup includes Batteries
Sleek design
No gate modifications are necessary
Easy installation
Reverse on contact
Slow down "soft stop"
Specifications
Specifications Quick Specs
Max Gate Length 14 ft
Max Gate Weight 600 lbs
Traveling Speed 13 - 16 Seconds per 90°
Maximum Gate Swing 120 degrees
Duty Cycle 100% Continuous Duty
Input Voltage 115V AC Single Phase
Secondary/Accessory Voltage 24V DC
Operating Temperature -4°F 10 131°F
Battery Backup 30-50 Cycles (average)
Control Box Nema 4 (rust proof)
Warranty 2 years

Downloads

FAAC 390 Brochure 1.13MB
FAAC 390 Manual 4.06MB
