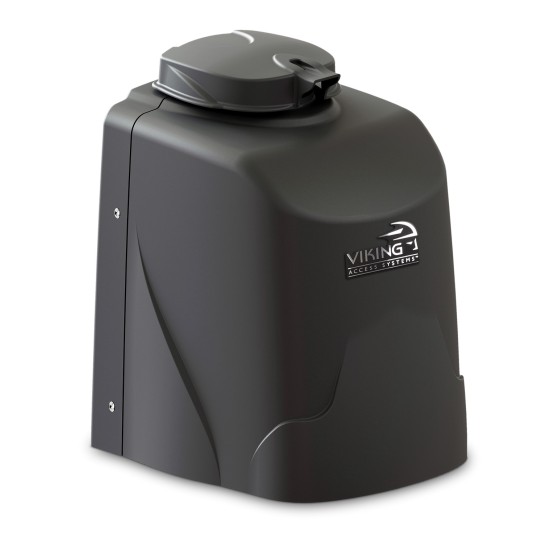

Viking F-1 Swing Gate Operator

  • Brand: Viking
  • Product Code: F-1
  • Availability: In Stock

Price: $2,450.00 $1,645.00


Viking F-1 Swing Gate Operator

The Viking F-1 swing gate operator showcase the commitment made in its concept and design. Whether it’s the simple, clean installation, energy efficient operation, or advanced battery backup function, this operator stands alone in it’s class.

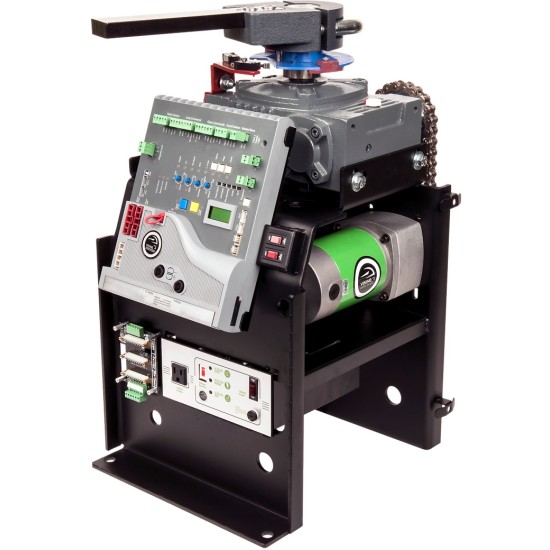

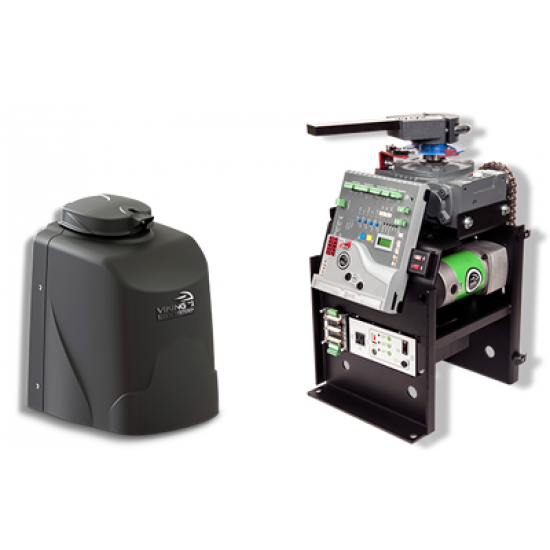

The  Viking Access System F-1 Swing Gate Operator, includes the V-Flex control board and a removable power supply box for low voltage wiring. The removable power supply box allows you to run low voltage to the gate operator rather than high voltage which removes the need to trench high voltage wires. This can save the home or business owner thousands in labor and permit costs.. The V-Flex control board provides a LCD display for diagnostics and operator status. The new 1/4" steel chassis allows an increased handling capacity for gates up to 1500 lbs. The F-1™ operator also features Viking's soft-start / soft-stop, built-in heater and Viking's true battery backup system. Smooth gate operation, compliant to both ETL and UL standards with 5 year commercial or 7 year residential warranty makes the F-1™ operator the ideal choice for your gate automation needs.


Features Adjustable "on the fly" Speed Control
True Seamless Battery Backup
Soft-Start & Soft-Stop for Smooth Operation
Built-In Surge Protection
Built-In Multilayer Lightening Protection
Built-In Heater for Extreme Climates
Solar Smart Power Saving Standby Technology
3 Layers of Chassis Corrosion Protection
Convenient Manual Release & Reset Button
Maglock Ready (maglock sold separately)
High Efficiency Transformer
Selectable 115/230VAC Power Input
Convenient J-Box for Quick High Voltage Wiring During Install
3 LEDs to Indicate Power Supply Status
Open/Stop/Close Buttons Integrated Into Control Board
LED Diagnostic Lights For Ease of Troubleshooting
Convenient Diagnostic LCD Display
On-Board Multimeter
Adjustable Automatic Close Timer
Bluetooth Capable Diagnostic Tool (additional accessory required)
Bluetooth Capable Master/Slave Setup (additional accessory required)
Digital Limits - Fast and Easy to Set (models K2, L3, H10, Q7 only)
Removable Modular Power Box (models L3, H10, F1, T21 only)
Convenient Loop Detector Rack (models L3, H10, Q7, F1, T21 only)
Alternative Post Mount Ready Chassis (models L3, H10 only)
Vacation "Lock Mode" (models K2, L3, H10, Q7 only)
Specifications Operational Voltage: 24 DC
Horsepower: 1/2
Main Power Source
115 / 230 AC Single Phase (feild Switchable)
24 AC/DC Solar Compatible
Battery 7AmpHr 12 DC x 2

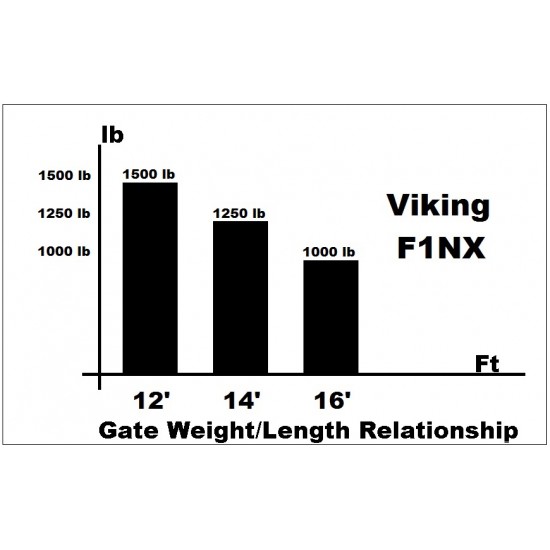

Max Gate Capacity: 1500 lbs / 12' or 1000 lbs / 16'
Traveling Speed: 13-16 Seconds per 90°
Battery Backup: 400 Full Continuous Duty Cycle(1500 lbs)
Maximum Duty Cycle: 100% Continuous Cycle
Operating Temperature: -20° F to 160° F


Viking F-1 2nd Gen Brochure 3.08MB
Viking F-1 Manual 3.22MB
Viking F-1 1st Gen Brochure 2.12MB
