Viking Access L-3 Slide Gate Operator

  • Brand: Viking
  • Product Code: L-3
  • Availability: In Stock

Price: $2,441.00 $1,445.00

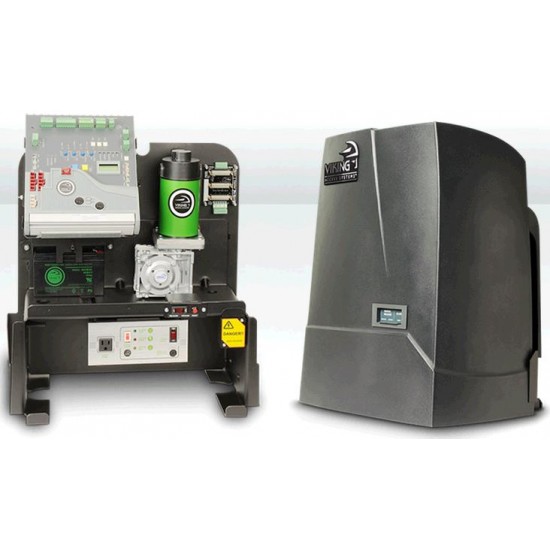

Viking Access L-3 Slide Gate Operator

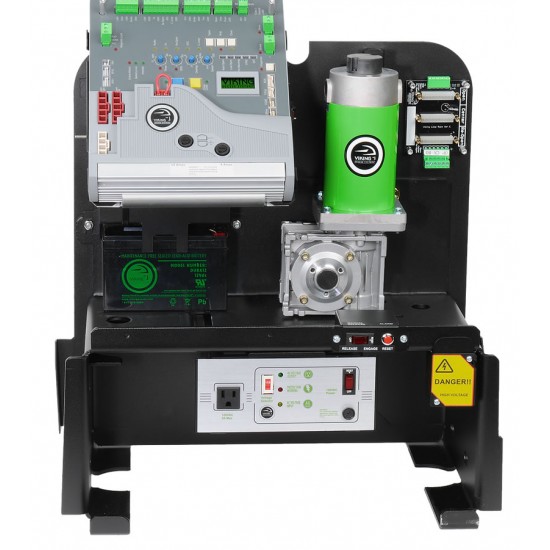

Viking Access Systems L-3™ Slide Gate Operator is perfect for residential and commercial gate applications.  The L-3 features the V-Flex control board with on-board diagnostics LCD display and a removable power supply box for low voltage wiring. The chassis design provides easy viewing of the controls and integrated post-mount provisions allowing it to be raised from the ground if needed. Featuring a built in heater to perform in cold weather, an increased gate capacity of up to 1600 lbs., a 5 Year commercial or 7 Year residential warranty and Viking’s true battery backup system. The L-3™ includes simple push-button digital limits setup, lockable cover and convenient access to the switch for manual release making this operator an excellent choice for both your residential and commercial properties.

Max Gate Capacity - 1600lbs / 60'

Max Operating Speed - 12" per second


Features Adjustable "on the fly" Speed Control
True Seamless Battery Backup
Soft-Start & Soft-Stop for Smooth Operation
Built-In Surge Protection
Built-In Multilayer Lightening Protection
Built-In Heater for Extreme Climates
Solar Smart Power Saving Standby Technology
3 Layers of Chassis Corrosion Protection
Convenient Manual Release & Reset Button
Maglock Ready (maglock sold separately)
High Efficiency Transformer
Selectable 115/230VAC Power Input
Convenient J-Box for Quick High Voltage Wiring During Install
3 LEDs to Indicate Power Supply Status
Open/Stop/Close Buttons Integrated Into Control Board
LED Diagnostic Lights For Ease of Troubleshooting
Convenient Diagnostic LCD Display
On-Board Multimeter
Adjustable Automatic Close Timer
Bluetooth Capable Diagnostic Tool (additional accessory required)
Bluetooth Capable Master/Slave Setup (additional accessory required)
Digital Limits - Fast and Easy to Set (models K2, L3, H10, Q7 only)
Removable Modular Power Box (models L3, H10, F1, T21 only)
Convenient Loop Detector Rack (models L3, H10, Q7, F1, T21 only)
Alternative Post Mount Ready Chassis (models L3, H10 only)
Vacation "Lock Mode" (models K2, L3, H10, Q7 only)
Specifications Operational Voltage: 24 DC
Horsepower: 1/2
Main Power Source: 115 / 230 AC Single Phase or 24 AC/DC Solar Compatible
Battery; 7AmpHr 12 DC x 2
Max Gate Capacity: 1600 lbs. / 60'
Traveling Speed: 12" per Second
Battery Backup: 100 Full Continuous Duty Cycles (1600 lbs)
Maximum Duty Cycle: 100% Continuous Cycle
Operating Temperature: -20° F to 160° F


Viking l3 Gen 2 Brochure 2.47MB
Viking L3 Gen 2 Manual 3.02MB
Viking L3 Gen 1 Manual 2.18MB
