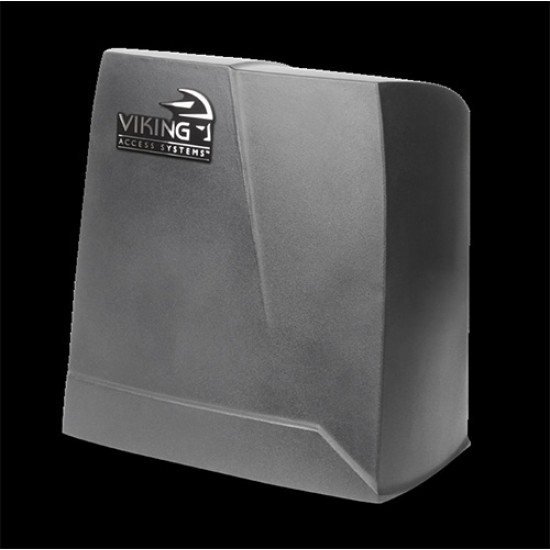

The K-2 Slide gate operator raises the bar by offering next-generation technology to the residential market. This operator comes with a multitude of different features and is designed to work perfectly in both residential as well as light commercial settings. The K-2 slide gate operator features a new and improved chassis design, V-flex control board, digital limits and even a different power panel to display LED status indicators. That technical language may have flown above your head, but it is a testimony of the highest quality, reliability and utmost satisfaction for you as a customer.
The K-2 gate operator bears the capacity to operate slide gates up to 700 lbs. and 30 ft. openings at 100% duty cycle under strict conditions. This efficient gate operator works best in residential slide gate applications. Anyone looking for efficiency and technology can opt for a K-2 gate operator.
Reliability is considered majorly when choosing an efficient slide gate operator. The motor is a very important element in the gate operation. Viking constantly improves the efficiency and working of their products by testing them frequently.
Maximum Gate Dimension: 30 ft
Maximum Gate Weight: 700 lbs.
Maximum Duty Cycles: Continuous duty
Motor Installed: 24VDC with 1/2hp
Electrical Requirements: 115V or 230V Single Phase
Warranty: 5-year warranty
· LCD screen displaying status and diagnostics
· Wireless Master/Slave Kit ensures secure and reliable wireless communication
· Remote access for settings, programming, diagnostics and gate status.
· Standard Battery Backup provides 100 continuous cycles at 100% duty cycle
· Advanced Lightning strike protection up 20,000 volts / 10,000 Amps.
· Simple push button
· Built-in heater for operating temperatures down to -20°F
· Power Saving technology minimizes current draw while at standby
· 5-year commercial warranty; 7-year residential warranty
· Need to purchase Viking Blue separately
The package includes:

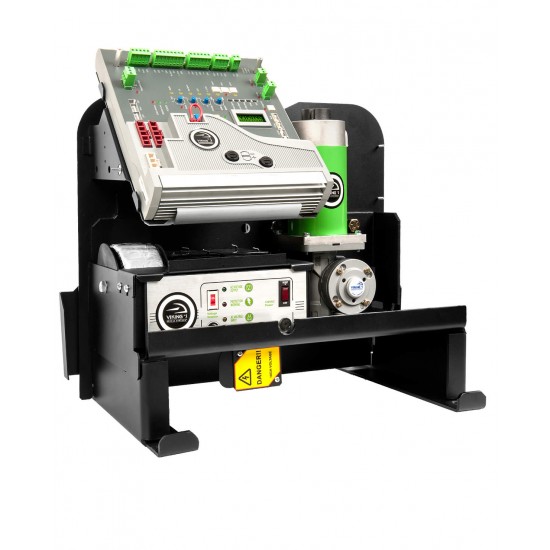

· 1 complete gate opener (chassis, motor, gears, circuit board, cover)
· 2 batteries 7ah
· 2 Chain brackets
· 2 Chain bolts
· 25ft of chain #40
|Features||Adjustable "on the fly" Speed Control |
True Seamless Battery Backup
Soft-Start & Soft-Stop for Smooth Operation
Built-In Surge Protection
Built-In Multilayer Lightening Protection
Built-In Heater for Extreme Climates
Solar Smart Power Saving Standby Technology
3 Layers of Chassis Corrosion Protection
Convenient Manual Release & Reset Button
Maglock Ready (maglock sold separately)
High Efficiency Transformer
Selectable 115/230VAC Power Input
Convenient J-Box for Quick High Voltage Wiring During Install
3 LEDs to Indicate Power Supply Status
Open/Stop/Close Buttons Integrated Into Control Board
LED Diagnostic Lights For Ease of Troubleshooting
Convenient Diagnostic LCD Display
Adjustable Automatic Close Timer
Bluetooth Capable Diagnostic Tool (additional accessory required)
Bluetooth Capable Master/Slave Setup (additional accessory required)
Digital Limits - Fast and Easy to Set (models K2, L3, H10, Q7 only)
Removable Modular Power Box (models L3, H10, F1, T21 only)
Convenient Loop Detector Rack (models L3, H10, Q7, F1, T21 only)
Alternative Post Mount Ready Chassis (models L3, H10 only)
Vacation "Lock Mode" (models K2, L3, H10, Q7 only)
|Specifications||Operational Voltage: 24 DC |
Main Power Source: 115 / 230 AC Single Phase or 24 AC/DC Solar Compatible
Battery: 12 DC x 2
Max Gate Capacity: 700 lbs. / 30'
Traveling Speed: 12" per Second
Battery Backup: 100 Full Continuous Duty Cycles (700 lbs)
Maximum Duty Cycle: 100% Continuous Cycle
Operating Temperature: -20° F to 160° F
