Doorking 1838 Access Plus


  • Brand: DKS DoorKing
  • Product Code: 1838-095
  • Availability: In Stock


Description

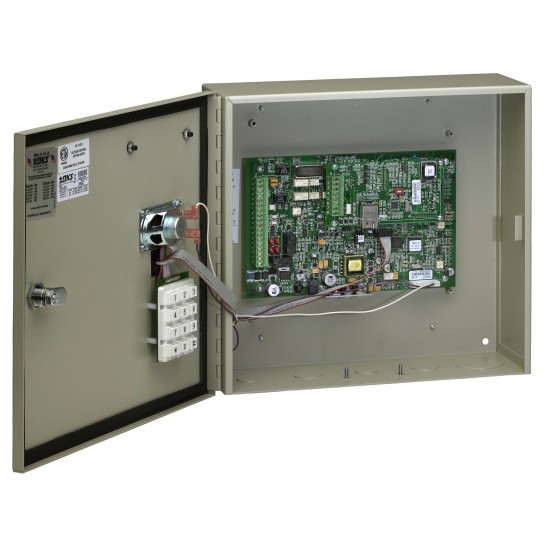

Doorking 1838 Access Plus

  • Pc programmable via the Internet, LAN, modem or direct connection to a PC
  • IP addressable allows homeowners to program the system directly from their PC - software included
  • Flexible compatiblity with several access control devices

The DKS Access Plus line combines essential features of our most versatile solutions with the ease and accessibility of computer programming and control. After installing the Access Plus Account Manager software on your PC, you can connect to the Access Plus system via a direct connection, LAN or the internet and begin to customize the system immediately. Set up time zones, add or delete access codes, set up email notifications, and even lock or un-lock a door with the click of the mouse button.

The DKS 1838 Access Plus is ideally suited for residential and small business applications. Doorking 1838 AP can control up to six (6) entry points with card readers, keypads or RF receivers using RS485 communication. Additionally, two (2) auxiliary relays on the main control board can be activated from the PC to control other devices or access control equipment (a gate operator for example). Call Gate Openers Direct of any questions on the DKS1838 Access Plus Model

Specification

Features
Features - Access Plus Account Manager software included
- Relay board available which allows use of existing 26-bit wiegand devices
- Holiday schedule
- Four (4) hold open time zones
- Schedule un-lock / lock times
- Email notifications
- Live relay control from your PC
- 100 device codes (card, keypad, transmitter)
- 500 event history buffer
- 10 temporary access codes

Access Control
- Residents/Tenants can control two (2) doors or gates via access control devises -- expandable to six (6) access control devices
- Access Control devices include: Card readers, keypads, MicroPlus RF controls, relay board (allows use of existing 26-bit wiegand devices)
Specifications
Specifications - 16 VAC, 20 VA system power (250 ma)
- U.L. listed power transformer provided
- Ringer equivalence: 0.0 A
- Jack type: RJ11C or W
- FCC (US): DUF6VT-12874-OT-T
- DOC (CAN): 1736 4507 A
- Complies with UL 294; ETL Listed
- Enclosure is NEMA 4x rated

Downloads

Doorking 1838 Access Plus Brochure 578.54KB
Doorking 1838 Access Plus Manual 273.74KB
