SecuraKey RK65K Proximity Reader


  • Brand: Secura Key
  • Product Code: RK65K
  • Availability: In Stock

Price: $258.00 $195.00

Description

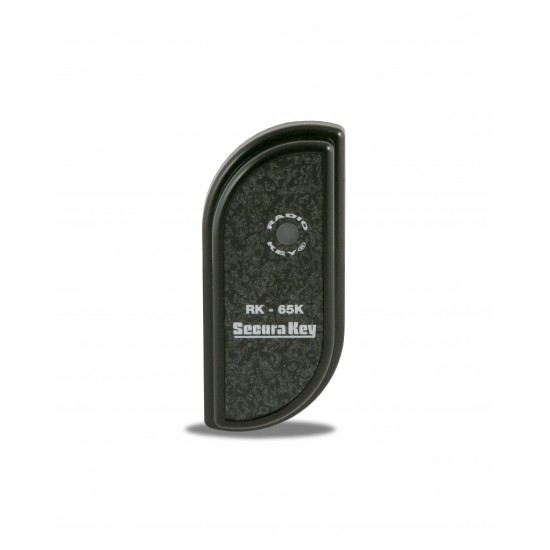

SecuraKey RK65K Proximity Reader

SecuraKey Radio Key ® RK-65K and RK-65KS are fully programmable, stand alone proximity access control unit that can manage up to 65,000 individual users. Patented Dynascan technology assures maximum performance in almost any environment.




Other tutorial videos can be found on SecuraKey's Product Tutorial's Page.

Specification

Features
Features Weather Resistant for Direct Outdoor Application

125kHz Technology

Dynascan® Auto Tuning for Superior Read Range

Up to 6” Read Distance

No Control Panel Required

Program with Handheld Programmer or...
...Proximity Card Deck (RK600e/RK65K/RK65KS)

Wiegand Output for Future Expansion (RK65K)

Connect PC or Serial Printer with Optional Audit Trail Module (RK600, RK600e)

Optional Auxiliary Reader for High-Security / Extreme Weather Conditions (RK600, RK600e)
UL294, FCC and CE Regulatory Approvals
Specifications
Specifications Dimensions (H, W, D):
3.50” x 1.60” x 0.60”
8.89 x 4.06 x 1.52 cm

Weight:
2.88 oz (81.65gm)

Power Requirements:
40mA/90mA avg/peak @ 5-14VDC

Latch Relay:
SPST solid state relay
1A max @ 60 VAC/DC or use SecuRelay®

Communications:
Wiegand - any format up to 40 bits

Cable Requirement:
Wiegand Mode: Up to 500 ft 5-6 cond.
20 AWG Shielded

Operating Temperature:
-40° to +158° F(-40° to +70° C)
Relative Humidity: 0-100% Non-Condensing

Operating Frequency:
125 kHz

Memory:
65,000 sequentially numbered cards

Latch Timer:
Programmable: 0.25 sec.- 18 hrs or Toggle Mode

Compatible Cards:
RKCM-02 (Molded Clamshell);
RKCI-02 (ISO);
RKKT-02 (Key tag) Sequentially numbered with up to 10 FC’s

Read Range:
Molded Card up to 6” (15.24 cm), ISO Card/key tag up to 5” (12.70 cm)

Warranty:
These Secura Key products are warranted against defects in materials and workmanship for life. Secura Key will replace any Secura Key manufactured product that fails to perform as intended. This warranty does not include freight, taxes, duties, or installation expenses. See price list for complete terms and conditions.

Downloads

SecuraKey RK65K Manual 144.96KB
SecuraKey RK65K Brochure 627.48KB
