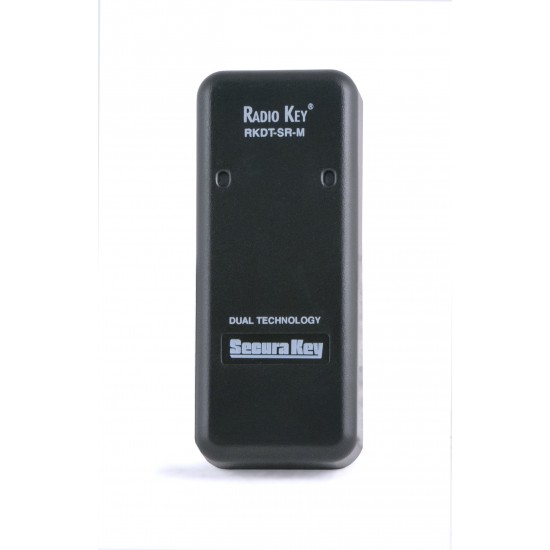

The Radio Key® RKDT dual technology Smart Readers feature compact, weather-resistant, surface mounted housings. They are available in either mullion mount (RKDT-SR- M) or switch plate (RKDT-SR-S) form factors.The RKDT-SR reader adds HID prox card compatibility to the SK-NET™ System using the NOVA.16 Controller. It can be used where HID® and SecuraKey cards are combine dat the same facility, or where customers are transitioning from HID® to SecuraKey. The RKDT-SR works with SecuraKey 26 or 32- bit cards, as well as HID passive cards with non-proprietary 26–37 bit “pass-through” formats. NOVA.16 accepts formats with 16 ID bits.The RKDT-SR reader connects to the NOVA.16 Controller via the RS-485 peripheral bus, which supports up to16 readers. The RKDT-SR obtains data communications and 12VDC power from the NOVA.16, but it has all the inputs and outputs required to monitor and control a door or gate. The reader sends card data and input status changes to the Controller, and receives access granted, access denied, and output control commands from the Controller. All door connections (Strike/Latch, REX, Door Monitor, aux inputs and outputs) are made locally at the Smart Reader. Cable “Home Runs” from the door location back to the NOVA.16 Controller are not required.
|Features||• Reads Secura Key and HID-Formatted Proximity Cards • Mullion housing allows indoor/outdoor door frame Mounting • Switchplate housing allows indoor/outdoor J-box Mounting • Four Inputs to Monitor Contact Closures • Two open collector outputs to control external devices • Solid State Relay to control door strike or other devices • Host Controlled LED (Red/Green) and buzzer • Connect up to 100 units on RS-485 Multi-drop Network|
