Viking H-10 Slide Gate Operator

Viking H-10NX Heavy Duty Slide Gate Operators

  • Brand: Viking
  • Product Code: H-10NX
  • Availability: In Stock

Price: $3,899.00 $1,895.00

Available Options



Viking H-10NX Heavy Duty Slide Gate Operators

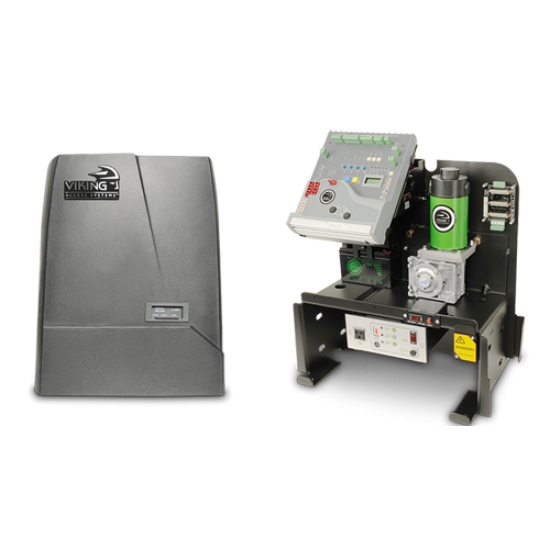

Made In AmericaThe newly updated Viking H-10, is considered one of the most sophisticated slide gate openers available in the industry. This slide gate can handle weights up to 2200 lbs. covering a 75 ft. travel distance. The H-10 Slide Gate Operator possesses a V-flex control board with a built-in on-board diagnostics LCD display and a detachable power supply box allowing a low voltage wiring option.

New and improved chassis design gives clear view of the controls and integrated post-mount provisions. The new Viking Access H-10 Heavy Duty Slide Gate Operator features a true 1 hp motor that increases the capacity of the gate up to 2000 lbs. The new H-10 includes simplified and improved push button digital limits setup. Additionally, it has an easy accessible switch for manual release, reliable battery backup system and a built-in heater. All these excellent features make this gate opener a brilliant choice to serve both residential, and high-traffic commercial locations. This Viking H-10 Heavy Duty Slide Gate Operator comes with a 5-year residential warranty.


  • Built-in LCD screen displays voltages, amps, gate status and diagnostics.
  • Wireless Master Kit ensures secure and reliable wireless communication.
  • Remote access for settings, programming, diagnostics, gate status and error notifications.
  • Standard Battery Backup provides 100 continuous cycles at 100% duty cycle.
  • Advanced Lightning strike protection up 20,000 volts / 10,000 Amps.
  • Simple, push button limit setup.
  • Built-in heater for operating temperatures down to -20°F
  • Power Saving technology minimizes drawing of current while standby
  • 5-year warranty

What's included:

  • 1 complete gate opener (chassis, motor, gears, circuit board, cover)
  • 2 batteries 7ah
  • 2 Chain brackets
  • 2 Chain bolts
  • 25ft of chain #40
  • 2 Warning signs


Product Info
Manufacturer's Warranty 5 Year Warranty
Features Max Gate Size: 75 ft
Max Gate Weight: 2,200 lbs.
Max Cycles: Continuous duty
Motor: 24VDC with 1hp
Electrical Requirements: 115V or 230V Single Phase
Specifications Operational Voltage: 24 DC
Horsepower: 1
Main Power Source: 115 / 230 AC Single Phase or 24 AC/DC Solar Compatible
Battery: 7AmpHr 12 DC x 2
Max Gate Capacity: 2200 lbs. / 75'
Traveling Speed: 12" per Second
Battery Backup: 100 Full Continuous Duty Cycles (2200 lbs)
Maximum Duty Cycle: 100% Continuous Cycle
Operating Temperature: -20° F to 160° F


Viking H-10 Manual 3.13MB
Viking H-10 Brochure 757.28KB
