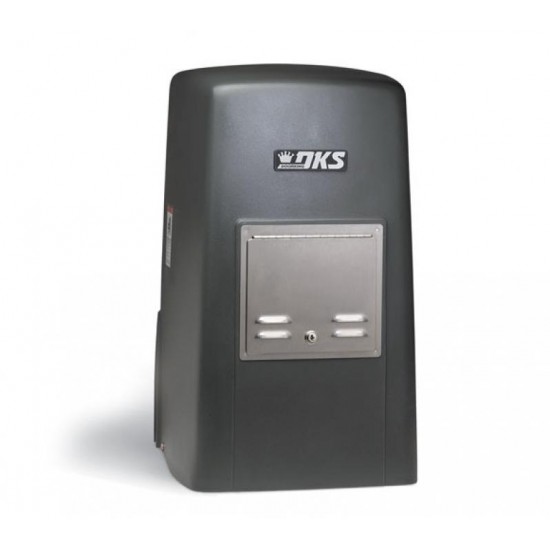

DoorKing 9024 Slide Gate Operator with battery backup. The 9024 can run exclusively on AC power but includes a battery backup system, and the unit sports an advanced microprocessor control board with outstanding gate automation features.
The DKS 9024 DC slide gate opener offers powerful, yet safe, multi-functional operation for heavy duty residential or light commercial applications. The 1/2 HO Quadra Drive DC Motor provides long lasting operation and back with factory installed dual 7.2Ah batteries. A "T-Handle" emergency release is provided for easy manual open or close. The 9024 features a belt drive 30:1 gear-box reduction system to provide powerful, yet extremely quiet, slide gate operation.
|Kit Includes||1qty Complete 9024 Unit |
2qty Chain Brackets
2qty Chain Bolts
20' #40 Chain
2qty Batteries (12VDC 7.2Ah)
|Features||Two 7.2 Ah Batteries |
Powerful 1/2 HP Quadra Drive motor for long life
Heavy-duty steel frame provides strength and quiet operation
“T-Handle” release is easily accessible from front of operator
Operator re-connects automatically when handle is released
Adjustable partial open limit
Adjustable limit nuts for precise gate control
Auto-close timer 1-30 seconds
Simple bi-parting gate interface (AC powered operators only)
Selectable loop/reverse input function; stop or reverse
Anti-tailgating feature helps to control un-authorized traffic
Standard normally closed stop circuit
DC Power Shut-Off switch
Battery protection circuit
Ports for plug-in open and reverse loop detectors – DKS detectors only
Gate Tracker reporting output provides operator data to access control system (DKS 1833, 1835, 1837 or 1838 only)
AC Powered Operator Only - 115 VAC Convenience outlets, and AC Power Shut-Off switch.
DC Powered Operator Only - 0.0 Amp SBPD(Pat Pend) Circuit insures longer battery life.
|Specifications||Maximum gate width 40 ft. (12.2 m) |
Maximum gate weight 1000 pounds (453.6 m). (Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
1/2 HP Quadra Drive motor, continuous operation with AC source power available.
With battery backup approximately 40 cycles with 7.2 Ah Batteries, 150 cycles w/18 Ah Batteries. Assumes a 16-ft, 1000 Lb gate.
Other external factors (temperature, charge state of batteries, gate weight, gate length, etc.) will affect the performance of the gate operator and may reduce the number of cycles.
115, 230 VAC input: 1.8 A / 0.9 A or 24 VDC Input 8.0 A.
Class I, II, III, IV applications
Compliant with UL 325 and 991, ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions: 16.75"W x 28"H x 19"D (42.5cm W x 71cm H x 48.3cm D)
