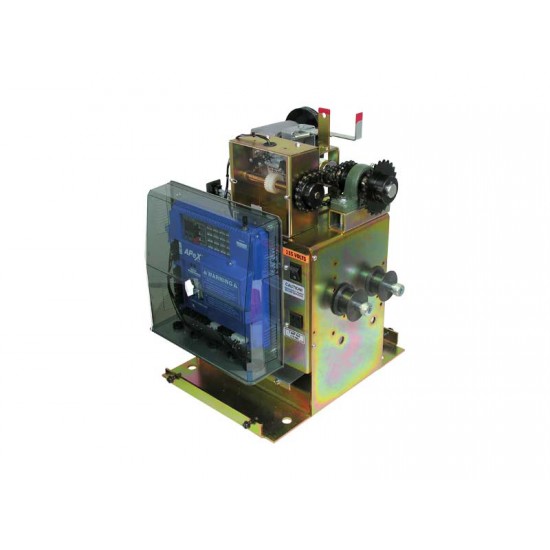

OSCO SLR Slide Gate Operator

  • Brand: OSCO
  • Product Code: OSSLR-211
  • Availability: In Stock

Price: $1,595.00 $1,095.00


OSCO SLR Slide Gate Operator

The SLR is Linear Osco's residential duty slide gate operator series. They come standard with a continuous duty 1/2 horsepower motor, and are available in 115V or 230V supply voltage, and move the gate at 11" per second.


Product Info
Features - APeX Controller with LED diagnostic display
- Black UV stabilized polyethylene cover
- Fully integrated MegaCode receiver
- Manual disconnect
- Exterior reset button
- Integral entrapment sensing system
- Continuous-tone entrapment alarm with reset button
- Selectable pre-start and run alarm
- Integrated maximum run and auto close timer
- Dual gate capability using 3-wire shielded cable
- Heavy-duty, zinc-plated, steel chassis
- #41 Drive chain (31' included)
- Heavy duty gear box and pillow block bearings
- Gear reducer, size 60, 20:1
- Rotary mechanical limits
- Power on/off button
- Accessory power outlet on 115V units
- Integrated 3-button Open/Stop/Close station
- Plug-in loop detector capability
- Surge protection
- Easy to read connection labeling
- Universal pad mount standard; optional post mount kit
- Optional heavy-duty pad mount pedestal
- Optional thermostatically-controlled strip heater
- UL325/UL991 compliant APex controller
- ETL listed for UL325 (Class I-IV) for U.S. and Canada
Specifications Operational Voltage: 115VAC or 230VAC
Horsepower: 1/2 hp
Max Gate Capacity: 500 Lbs / 25'
Traveling Speed: 11" per second
Maximum Duty Cycle: 100% Continuous Duty
Secondary Accessory Voltage: 24VDC
Warranty: 5 Years


Osco SLR Brochure 215.39KB
Osco SLR Manual 1.45MB
