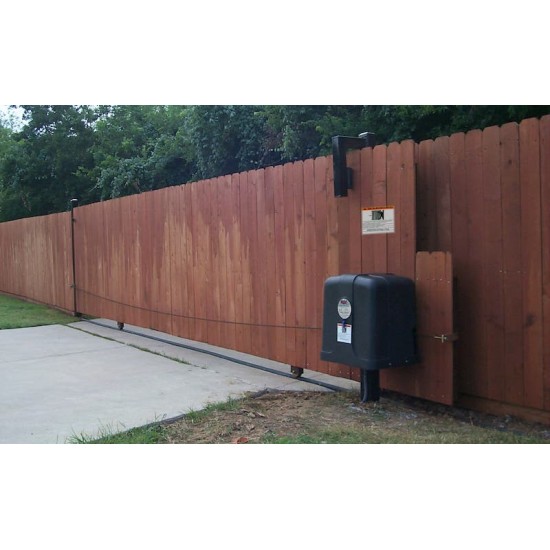

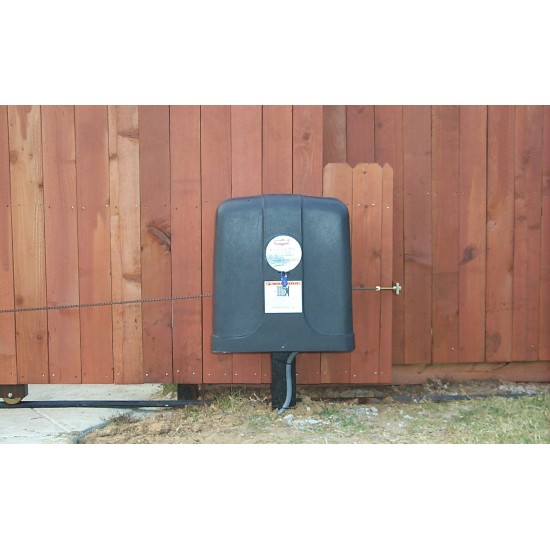

USAutomatic Patriot RSL Solar Slide Gate Opener — Made in the USA

The USAutomatic Patriot RSL is one of the most trusted, time-proven slide gate openers on the market — and for good reason. Proudly made in the USA, this heavy-duty slide gate opener is engineered for heavy residential, farm, ranch, and light commercial applications where reliability isn't optional. Whether you're running it on solar or AC power, the Patriot RSL delivers consistent, fast performance on gates up to 32 feet and 800 pounds. As a solar slide gate operator, it's one of the industry's most efficient — designed specifically to run the full range of accessories without requiring a larger solar panel. ETL Listed and Oracle Enabled right out of the box, the USAutomatic Patriot RSL sets the standard for what a residential slide gate opener should be.

What's in the Kit

This solar upgrade kit includes everything you need to get up and running quickly:

• 1 — 10 Watt Solar Panel with mounting bracket
• 2 sets of UL Monitored IR safety photo eyes
• 1 — USAutomatic long range radio receiver
• 2 — USAutomatic 2-button teardrop shape remotes

USAutomatic strongly recommends installation of additional safety devices including photo eye sensors, safety loops, and safety edges for maximum protection.

Key Features

• Made in the USA — high quality low voltage slide gate operator built to last
• Solar OR AC Charged — flexible power options for any installation
• Gates up to 32 feet travel distance and 800 lbs — handles heavy residential and light commercial gates
• Fast 1 foot per second opening speed — one of the fastest in its class
• ETL Listed — independently certified for safety and performance
• Oracle Enabled — integrated wireless control compatible with all Oracle products and HomeLink
• Micro Processor Controlled — precise, reliable gate operation every time
• Selectable soft stop — available for open position, close position, or both
• Left or right side installations — no wiring changes required
• Patriot control board compatible — works with both swing AND slide gate operators
• Easiest manual release available — simple override when you need it
• 24/7 Total Customer Support — help is always available

Standard Features

• Solar or AC charging available
• Full system capable — supports all accessories
• Easy-to-follow instruction manual included
• Adjustable current sense in both directions
• Frame fully welded and powder coated
• Built-in timer to close
• Pad or post mount options
• Delrin idler rollers (not sprockets) for smooth, quiet operation
• Molded plastic UV-treated cover for weather resistance
• 30 feet of #41 chain included
• 2 adjustable chain bolts and brackets
• Fused board protection
• 13 LED troubleshooting lights for fast diagnostics
• On-board open/close push button
• Danaher gear motor with brake
• Easy-to-adjust limit switches
• Oracle Solar Friendly DFGCU (Dual Frequency Gate Control Unit)
• 3 Oracle key fob transmitters included
• Morning Star Solar Charge Controller included with all solar operators
• Only solar operator designed for all types of accessories without increasing solar panel size
• Shipping weight: two boxes — 70 lbs / 20 lbs

Solar Friendly — Efficient by Design

The Patriot RSL is built from the ground up as a true solar slide gate operator. Unlike competing units that require oversized solar panels to run accessories, the Patriot RSL handles its full accessory load on a standard solar setup. The solar kit includes a 10 Watt solar panel with mounting bracket, and the Morning Star Solar Charge Controller is included with every solar operator — no separate purchase required.

• Solar Panel: 10 Watt panel with mounting bracket (included with solar kits)
• AC Charger Option: 5-stage micro processor controlled charger rated at 900mA
• Recommended Battery: 33 amp hour minimum, maintenance-free GEL, AGM, or Lead Acid
• Solar Charge Controller: Morning Star controller included with all solar operators

Whether your installation is off-grid or you simply want the reliability of solar backup, the Patriot RSL delivers consistent gate operation without demanding a large or expensive solar array.

New Oracle Radio Equipment — Smarter Gate Control

Every Patriot RSL ships Oracle Enabled, giving you access to the most advanced USAutomatic slide gate control system available. The Oracle platform uses a Dual Frequency Gate Control Unit (DFGCU) that eliminates programming delays and works seamlessly with all Oracle accessories and HomeLink home automation systems.

• DFGCU (Dual Frequency Gate Control Unit) — compatible with all Oracle products and HomeLink
• Dual outputs — one transmitter button for standard gate operation, a second for hold-open
• Easy-install garage door receiver available — control both your gate and garage door with a single transmitter
• Direct programming — transmitters and keypads program directly to the DFGCU with no delay in response time
• 3 Oracle key fob transmitters included

Warranty and Support

The USAutomatic Patriot RSL is backed by one of the strongest warranties in the industry. The control board is covered by an industry-leading 5-year warranty, and all other components carry a 3-year warranty — a direct reflection of the confidence USAutomatic places in American-made quality. Combined with 24/7 total customer support, you're never left without a resource when you need it. This is a heavy duty slide gate opener built to perform for years and supported every step of the way.
