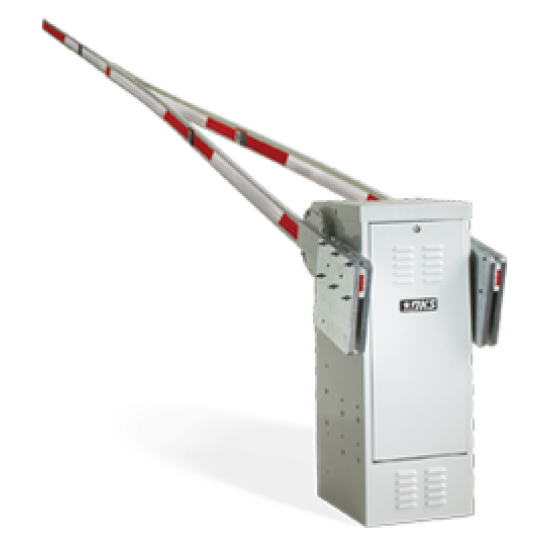

Doorking 1602 1HP HD Barrier Gate Openers

Built for Wide Lanes. Built to Last. The Go-To Budget Barrier Gate for High-Traffic Commercial Sites.

When you’re managing a high-traffic commercial property or specifying a gate system for a client, you need hardware that handles wide lanes cleanly, holds up under daily use, and doesn’t break the budget. The DoorKing 1602 checks all three boxes.

Designed specifically for wide-lane applications — arms extend up to 27 feet — the 1602 is a go-to choice for parking facilities, gated communities, industrial yards, warehouses, and any commercial site where standard barrier gates simply can’t span the opening. Whether you’re protecting a two-lane entrance or a wide loading bay, the 1602 is engineered to handle it.

Solid Power, Efficient Operation

At the heart of the 1602 is a 1 HP continuous-duty motor paired with a heavy-duty 60:1 worm-gear reduction system that operates in a continuous oil bath. That means smooth, consistent operation with minimal wear over time — even in environments with high cycle demands. The arm completes a full 90° rotation in approximately 5.5 seconds, keeping vehicle flow moving without delays.

Wide Voltage Compatibility

The 1602 supports 115, 230, and 460 VAC input configurations, giving installers flexibility to work with existing electrical infrastructure on-site. No costly rewiring surprises.

Counterbalanced Arm Design

The three-piece wishbone-style arm assembly is counterbalanced for smooth, low-stress operation — reducing strain on the motor and extending the life of the unit. Arms are available in standard configurations and can be adapted to your site’s specific clearance requirements.

Accessible Diagnostics

The 1602’s onboard system tracks gate cycle count, input issues, loop detector alerts, forced entry attempts, and arm impact events. For property managers and service technicians alike, that diagnostic visibility means faster troubleshooting and less downtime.

Compatible with Your Existing Access Control Setup

The 1602 integrates with a wide range of access control options — card readers, keypad entry, loop detectors, remote receivers, and telephone entry systems — so it fits into an existing infrastructure or can be built out as part of a complete new installation.

Factory Warranty Included

Every DoorKing 1602 ships with a factory warranty, giving you confidence in the investment and a clear path to support if anything ever comes up.

Who Is This For?

·      Property managers at commercial buildings, parking garages, office parks, or gated communities who need a dependable, professionally installed gate system without overpaying for features they don’t need.

·      Installers and contractors who want a proven, easy-to-service barrier gate that fits wide-lane specs and integrates cleanly with access control equipment.

·      Facility managers overseeing industrial yards, warehouses, or restricted-access sites where lane width is a constraint and reliability is non-negotiable.

Why the 1602 From Gate Openers Direct?

Gate Openers Direct — a division of Leatherwood Access Controls of Texas, established in 1999 — has been specifying and supplying commercial gate equipment for over 25 years. We know which products hold up in the field and which ones don’t. The DoorKing 1602 earns its place in our lineup because it consistently delivers for the customers who need wide-lane barrier control at a price that makes sense.

Have questions about whether the 1602 fits your application? Call us at 713-330-3333, Mon–Fri, 10AM–5PM. We’re happy to talk through your project.
