FAAC 400 CBAC Single Gate COMPLETE KIT
  • Stock: In Stock
  • Model: 400 CBAC Single Gate Opener Complete Kit
  • SKU: FAAC400
$2,199.00
$4,031.00

Available Options

(+$27.95)

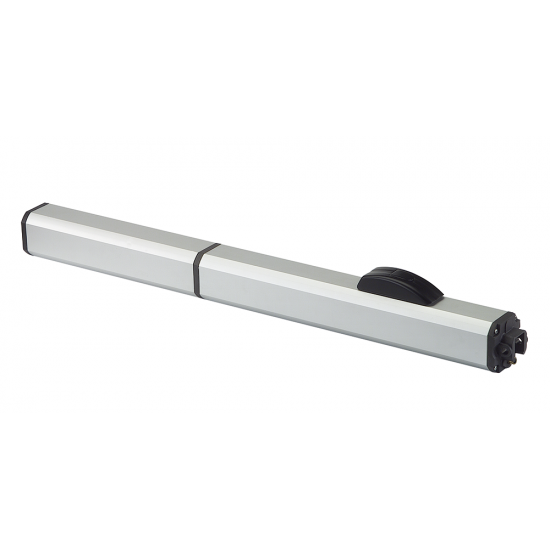

When "Simply the Best" is required in a limited space application, the HYDRAULIC FAAC 400 Actuator is as tough as they get! Hydraulics are what heavy equipment uses around the world for heavy gates that run many times a day. FAAC has been in this specialty end of the gate opener market for OVER 50 YEARS! With our COMPLETE KIT SHOWN HERE you get everything you need to install the opener including remotes, safety beams, all hardware and more!

Secure your property and assets with the FAAC 400 Swing Gate Opener. This silent operator supports single or dual swing gates giving you the flexibility to use in homes, apartments, commercial sites, or gated communities.

The compact design of this gate opener lets you implement the device into existing gate systems with minimal accommodations. With a maximum weight of 1,300 lbs., the FAAC International 400 CBAC model will make easy work of heavy and ornate gates. High traffic areas are no problem as you'll find the motor is strong enough for up to 70 open/close cycles an hour, even at max capacity. If you find yourself needing to swing a heavier gate, the FAAC Solenoid Lock Kit increases the holding force to 2,000 lbs.

Each opener locks the gate in position when opened or closed, with physical positive gate stops being required to prevent overextension of the opener. Not sure how to install stops? Not a problem thanks to FAAC's optional hidden internal positive stop add-ons. Strong machining and materials pair with the opener's small form factor giving you the best of both worlds. Silent operation is driven by a true hydraulic system and self-lubrication that enables it to endure up to 1,000,000 cycles. These factors mean you'll get a longer life expectancy, ~10 years, out of the FAAC 400 Swing Gate Opener compared to the competition.

Every order comes with a pre-fabricated control panel making your wiring setup simple and safe. Antenna extension kits are an affordable add-on for gates located closer to the access road than to the main building. Manual key override mechanisms are installed for access in the case of a power outage or system failure. Automatic exit can be enabled based on motion or vehicle presence depending on the add-on chosen.

Create a custom order to fit your needs and see why the FAAC 400 Swing Gate Opener is becoming the standard for access automation.

Product Info

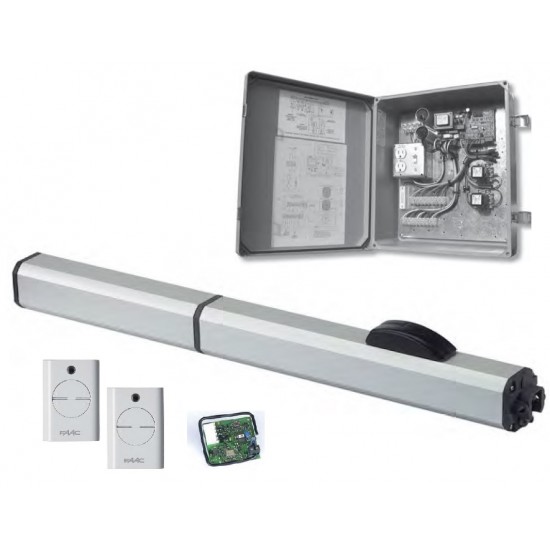

Kit Includes FAAC 400 CBAC Single Gate Opener Kit Includes: 1qty Prewired Fiberglass Enclosure 1qty 455D Control Board 1qty 400 CBAC Operator 1qty Radio Receiver 2qty Remote Controls 1qty Pair of Safety Beams Installation Support Lifetime Technical Support
Features Features 455D Control Board Single Swing or Dual Swing Convenient Manual Release Soft Start and Soft Stop On Board Programming via Push Button Selectable Operating Logic Plugin Module Radio Receiver Built in Test Button Adjustable Automatic Close Time Adjustable Torque Self Lubricating for extremely long life Whisper Quiet Emergency Release Hydraulic Locking in Open and Close position
Specifications Quick Specs Max Gate Length 16 ft Max Gate Weight 1300 lbs Travel Speed to 90° 17 secs Maximum Gate Swing 115° Duty Cycle 80 cycles per hour, maximum Auto Close Timer 0-120 seconds (adjustable) Input Voltage 115V AC or 220V AC (please specify) Operational Voltage 115V AC or 220V AC (please Specify) Secondary/Accessory Voltage 24V DC Accessory Max Load 0.5 amp (500 mA) Operating Temperature -78° F to 131° F Battery Backup Optional > battery backup available for order Positive Stops Optional > hidden internal stops available for order RECOMMENDED for double-swing gates Control Box 4" x 16" Lockable Nema 4 (rust proof) Upgrade to metal 20"x16" is available Hydraulic Lock Locks in Open AND Closed position Hydraulic Fluid 2.3 quarts Shipping Weight Control Box = 25lbs / Control Arm = 29 lbs each Dimensions (control box) 14"W x 16"H x 6.88"D Dimensions (control arm) 40.5"L x 3.38"W x 4.45"H Warranty 2 Year
