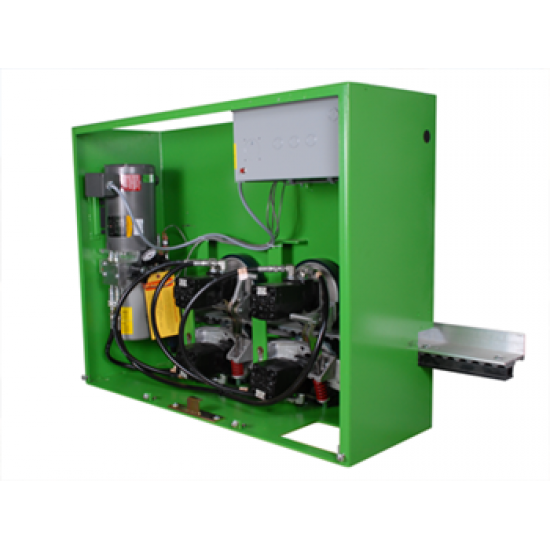

HySecurity SlideDriver 200 is a powerful, rugged, continuous duty, industrial grade, hydraulic slide gate operator that exceeds all operator reliability, longevity, maintenance and security standards. It cycles the heaviest, longest gates imaginable, including those securing airport runways. It''s a double-wide, four wheel drive hydraulic gate operator utilizing HySecurity''s XtremeDrive™ system for maximum pull force. Cycles up to 20,000 lb gates at 1 ft/s. The SlideDriver 200 is equipped with two AdvanceDrive™ wheels that run on the top of the drive rail and two XtremeDrive™ pinion wheels which engage a rack on the underside of the drive rail. This increases the pull force for the longest, heaviest industrial and high security gates. The robust 10 gauge steel chassis protects all moving parts and controls from vandalism and sabotage. Powder coating over zinc plate provides excellent abrasion and corrosion resistance for an enduring, attractive finish.
Easily configure gate operation to specific site requirements with unique and unequalled Smart Touch Controller. PC interface provided for easy configuration and quick troubleshooting using Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.). Upload latest software, troubleshoot system and save operator configurations. Programmable dual gate or sequenced gate integration. Three configurable user relays plus optional Hy8Relay™ - an extended relay module providing eight additional programmable relay outputs.
Monitor gate system and accessory status, system operational malfunctions, maintenance alerts, or gate breach alarms. Communicate security or operational events to security command and control or service technician in real time via Ethernet/fiber using optional web based HyNet™ Gateway. Target specific security and operational alerts to specific recipients. View or download 16,000 plus events (logged in non-volatile memory) from a remote location or on-site for precise and quick system troubleshooting. Operate and configure gate remotely.
HySecurity SLIDEDRIVER 200 CORRECTIONS is a powerful, rugged, continuous duty, industrial grade, hydraulic slide gate operator that exceeds all operator reliability, longevity, maintenance and security standards. Cycling the heaviest, longest gates imaginable, it''s double-wide, four wheel drive, hydraulic gate operator utilizes HySecurity''s XtremeDrive™ system for maximum pull force. It is specifically designed for prisons, law enforcement, court systems or other high security applications where ultimate security is critical. Three high security lock options provided, plus an extra heavy 10-gauge cover for added protection.
HySecurity correctional facility gate operators come standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities, such as gate position outputs, interlock capability for sally ports or sequenced gates, and multiple relays for an external solenoid lock or other customizable options.
|Features||Highest security - For added protection, features heavier, 10-gauge cover with a high security lock. |
XtremeDrive™ System - Heavy gates operate more reliably in severe weather using XtremeDrive System.
Seamless synchronization - Syncs with all HySecurity operators for dual gate, sally port or sequenced gate integration.
Move large and heavy gates - Maximum gate weight is 20,000 lb
Smooth operation even in extreme weather - Temperature rating: -40° F to 158° F (-40° C to 70° C)
|Specifications||Gate Weight Max. up to 20,000 lb (9,072 kg) |
Gate Length Max. Limited only by weight
Rate of Travel 1 ft/s (30 cm/s)
Duty Cycle Continuous
Warranty 5 year
