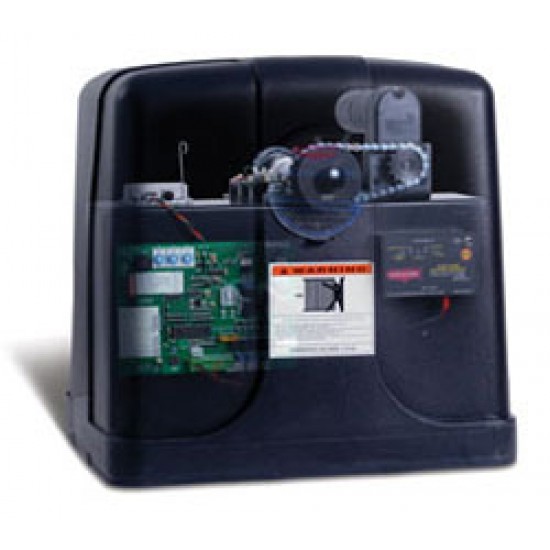

US Automatic Patriot Slide Gate Operator

US Automatic Patriot Slide Gate Operator
-100 %
Patriot Slide Gate Brochure
Patriot Slide Gate Manual
US Automatic Patriot Slide Gate Operator
  • Stock: In Stock
  • Model: Patriot RSL
  • SKU: USA005

Available Options

Please call us for price




Ideal for the installation requiring solar charging or full system operation during AC power outages. The Patriot RSL is the most efficient slide gate operator in the industry. Ideal for gate up to 32 feet in travel distance and up to 650 pounds

Pad or Post mount installation option is standard, simple and convenient manual release knob with easy to adjust limit switches.

Utilizing the Patriot control board and new PEPM software for photo eye power management allows any photo eye to be installed on all USAutomatic operators without needing additional solar panels.

Product Info
FeaturesPatriot control board with State-of-the-art microprocessor 5 year control board warranty 12 volt DC operating system 24 foot gate openings up to 600 lbs Easy access emergency release Fully welded and powder coated frame Pad or Post mounts Easily 240 square inches of accessory mounting space Delrin idler rollers (NOT SPROCKETS) Molded plastic UV treated cover 30 feet of #41 chain 2 adjustable chain bolts and brackets Fused board protection Warner electric 12vdc gear motor with brake and internal thermal overload protection Made in the USA Warranty: 5 year control board / 3 year all other components 2 - LCR 2 button transmitters Included Pre-wired solar friendly LCR dual channel receiver Same control board for Single, Dual or Slide operator Solar or AC charged with solar friendly Smart charge controller Designed to operate with all types of solar friendly accessories without adding solar panels Independent Gate 1 and Gate 2 sensitivity adjustment Soft stop selectable for swing or slide operators Battery powered providing real battery backup. Not 1 cycle Built in Timer to Close Photo Eye Power Management (PEPM) solar friendly software For Residential, light commercial, farm and ranch use Fast ~12 second cycle time (90 degree opening) Danaher 24” linear actuator delivering 500 lbs of dynamic thrust and a static hold load rating of 1000 lbs Single or Dual gate compatible
SpecificationsMax Gate Length 32 ft Max Gate Weight 650 lbs
