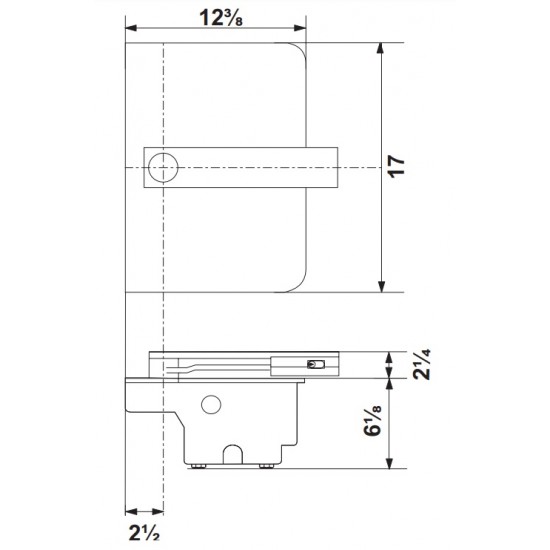

Viking I-770 Cad Drawing
Viking I-770 Brochure
Viking I-770 Manual
Viking I-770 Underground Gate Operator
  • Stock: In Stock
  • Model: I-770
  • SKU: VI770
$1,911.00
$3,105.00

Available Options

(+$26.95)

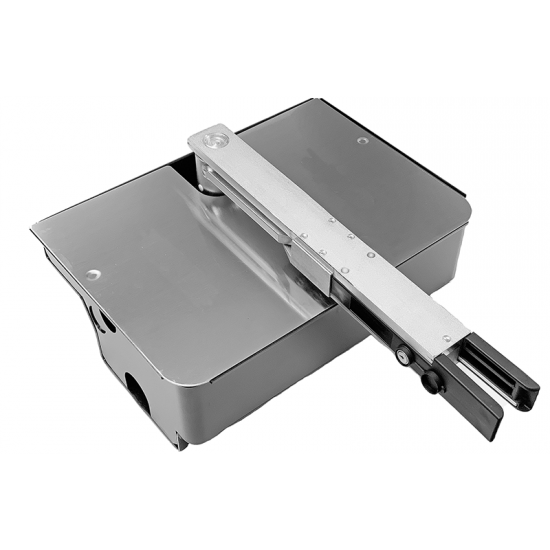

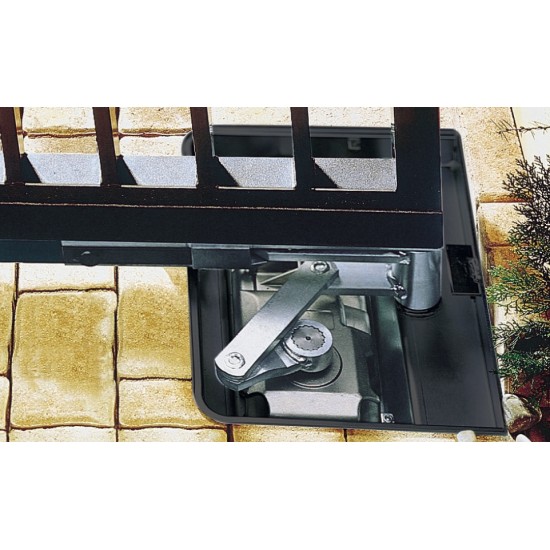

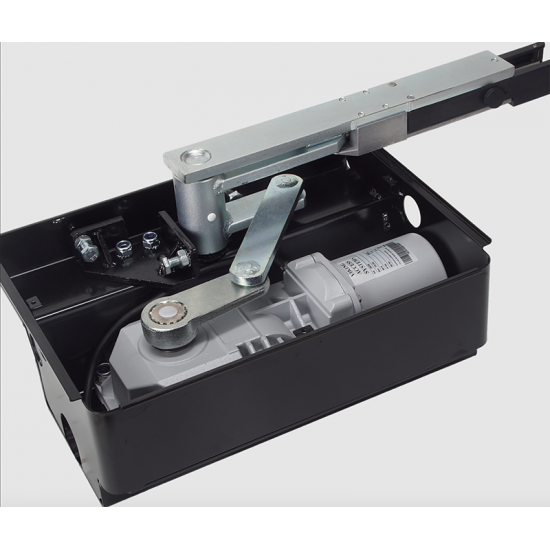

The I-770 Underground Swing Gate Operator offers the solution to home and property owners that want to center all the attention on their gate. Nearly invisible, the I-770 is ETL Listed, UL325, and UL991 compliant. The direct-drive DC gear-head unit is IP67 water-resistant and has a convenient manual release mechanism. The I-770 comes standard with steel chassis and a battery backup capable of 250 continuous cycles. Stainless steel chassis and hardware upgrades are available. The I-770 is powered by the V-Flex control board, including speed control and diagnostic LCD display. This intuitive operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations.
Product Info

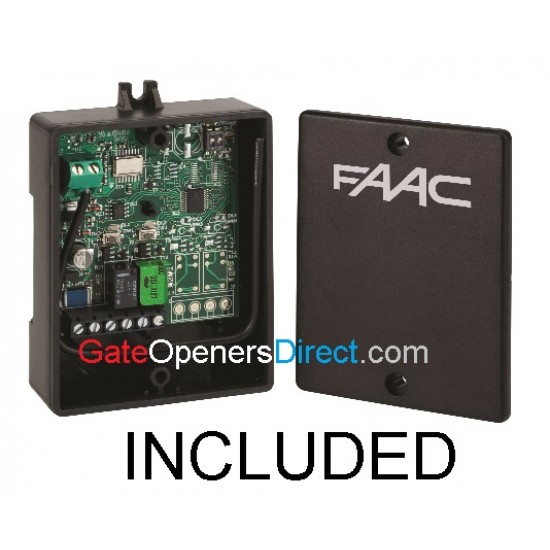

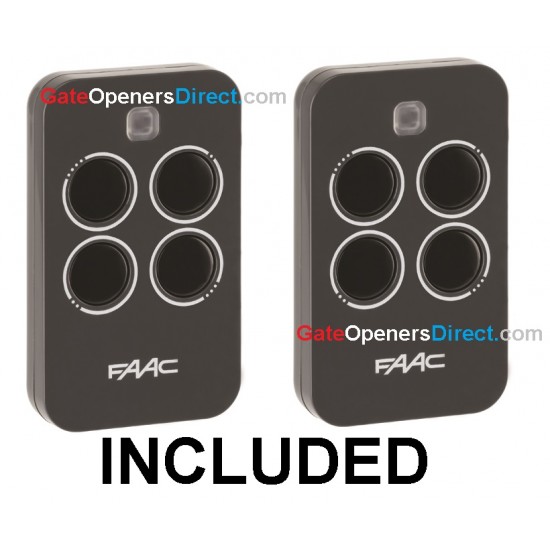

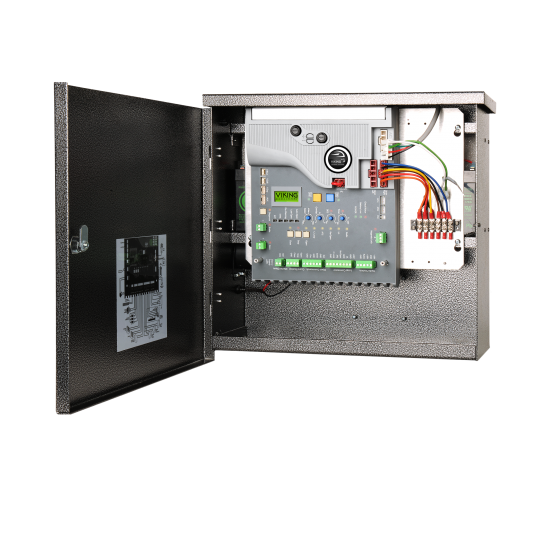

Kit Includes Metal Locking Control Box Vflex Control Board 2qty Batteries for Backup 1qty Motor/Gear Assembly (for Single Swing) Inground Mounting Box Inground Box Cover Articulating Lever Close Limit Positive Stop Assembly Open Limit Positive Stop Assembly Release Lever With Locks Radio Receiver 2qty Remotes Set of Safety Beams
Features MAX GATE CAPACITY: 650 lbs/ 12' MAX OPERATING SPEED: 13 - 15 Seconds per 90° OPERATING TEMP: -20°F up to 131°F MAX DUTY CYCLE: 100% Continuous Cycle STRIKE PROTECTION: 10,000 Amps / 20,000 Volts
Specifications Operational Voltage: 24 VDC Main Power Source Options: 120/240 VAC Single Phase Max Torque: 221 lb-ft (300 Nm) Battery Backup: Up To 250 Contin. Cycles Operating Speed: 13-15 seconds per 90˚ Operating Temperature: -20˚F up to +131˚F Max Gate Capacity: 650 lbs / 12 ft Max Duty Cycle: 100% Contin. Cycle
